Description

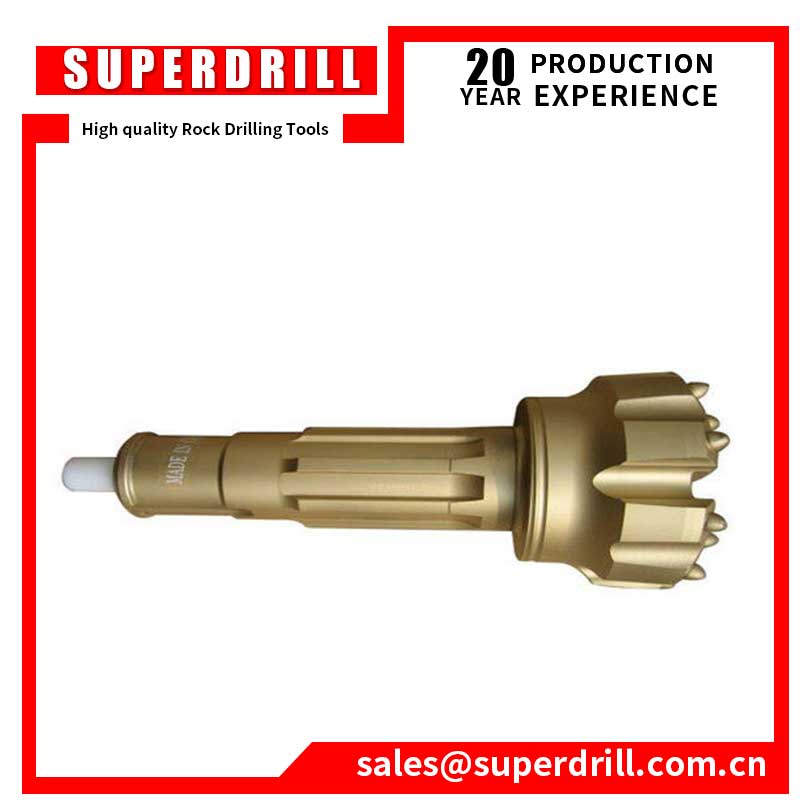

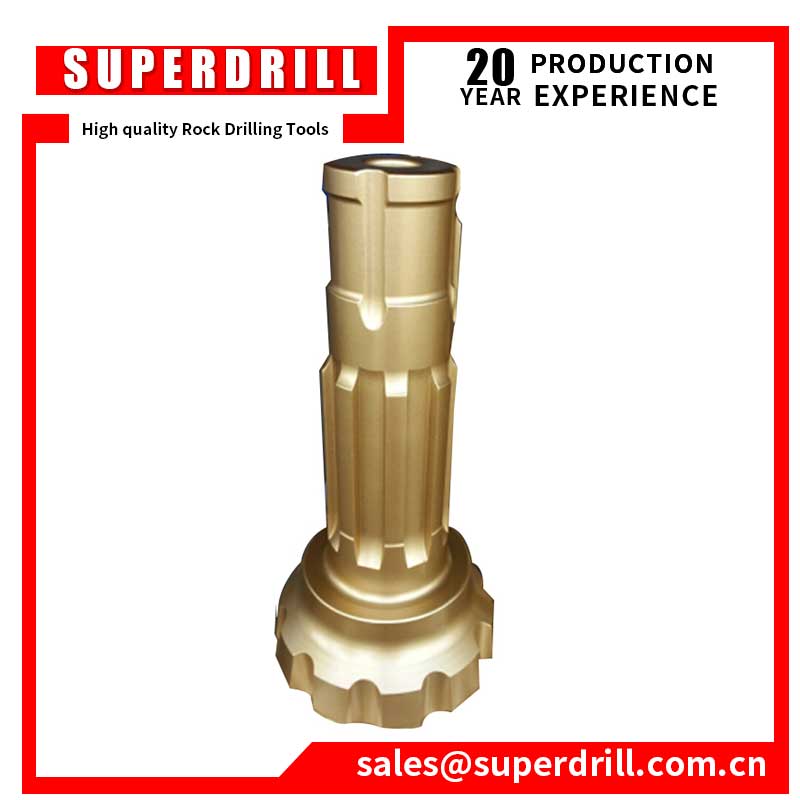

SUPERDRILL could supply the DHD series DTH Bit with cemented carbide buttons have very good wear-resistant. Buttons are strong in the mining process and could meet requirements of various rocks , and the service lifetime is very long.
Shank Type: SD4, SD5, SD6, SD8
Bit Diameter:105mm-305mm
Bit Face Design:Flat Face, Convex Face, Concave Face, Drop Center, Double Gauge.
|
SD Shank DTH Drill Bit
|
|||||
| Shank Type | Diameter in mm | Flushing Holes NO. | Gauge Buttons | Face Buttons | Approx. Weight |
| SD 4 | 105 | 2 | 7*14mm | 6*13mm | 9.0 KGS |
| 110 | 2 | 7*14mm | 6*13mm | 9.5 KGS | |
| 115 | 2 | 8*14mm | 7*13mm | 10 KGS | |
| 120 | 2 | 8*16mm | 7*13mm | 11.5 KGS | |
| 127 | 2 | 8*16mm | 7*13mm | 12.5 KGS | |
| SD 5 | 135 | 2 | 8*16mm | 8*13mm | 15.5 KGS |
| 140 | 2 | 8*17mm | 7*14mm | 16.0 KGS | |
| 146 | 2 | 8*18mm | 7*14mm | 16.5 KGS | |
| 152 | 2 | 8*17mm | 8*14mm | 17.0 KGS | |
| 165 | 2 | 8*18mm | 9*16mm | 18.0 KGS | |
| SD 6 | 152 | 2 | 8*17mm | 8*14mm | 26.0 KGS |
| 165 | 2 | 8*18mm | 9*16mm | 27.0 KGS | |
| 171 | 2 | 8*18mm | 10*16mm | 29.0 KGS | |
| 190 | 3 | 9*18mm | 11*16mm | 32.0 KGS | |
| 203 | 3 | 9*18mm | 12*16mm | 34.0 KGS | |
| SD 8 | 203 | 2 | 9*18mm | 12*16mm | 37.0 KGS |
| 216 | 2 | 10*18mm | 17*18mm | 48.0 KGS | |
| 241 | 2 | 10*18mm | 17*18mm | 63.0 KGS | |
| 254 | 3 | 12*18mm | 19*18mm | 70.0 KGS | |
| 292 | 3 | 12*18mm | 30*18mm | 85.0 KGS | |
| 305 | 4 | 12*18mm | 30*18mm | 98.0 KGS | |
