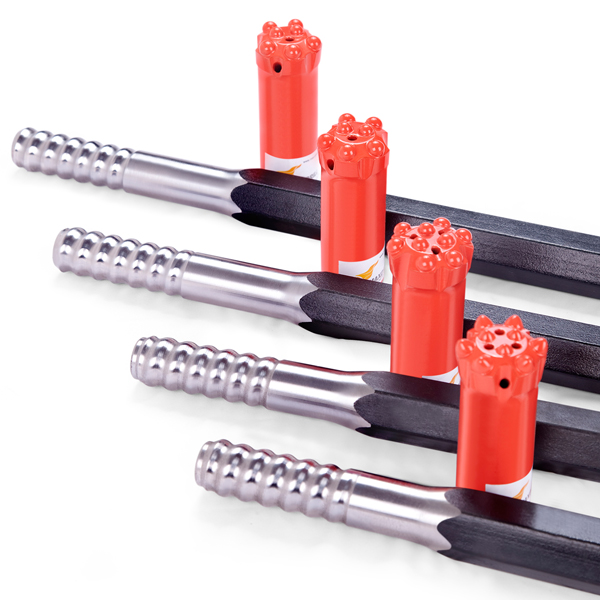

R28 Drill Bit Thread button bits

HomeProductsThread Button bitsR28 Thread Button Bit R28 Drill Bit Thread button bits

Description

Thread R28 (1 1/8")

Bit Diameter: 38mm-45mm

Length of drill rod: 2800mm-4310mm

Button bit design: Flat face, drop centre, Normal and Retrac body.

Tungsten carbide (Buttons): Spherical, Ballistic and Conical.

Applications: Drifting, Tunneling, Bench

We have different designs for various rock formations, longer service life to decrease use costs for users.

Button Bit ( R28)

D

Flushing hole (mm)

Buttons

(mm)

Angle

Class

Part No.

mm

inch

Gauge

Front

Gauge

Front


38

41

43

45

1 1/2”

1 5/8”

1 11/16”

1 3/4”

2×5

2×5

2×5

2×5

1×5

1×5

1×5

1×5

5×9

5×6

5×10

5×11

2×7

2×8

2×8

2×9

30°

30°

30°

30°

H

H

H

H

3038R2807

3041R2807

3043R2807

3045R2807


41

1 5/8”

2×5

2×5.5

6×9

2×8

30°

S

3041R2808


43

45

1 11/16”

1 3/4”

——

1×5

3×5

3×5

6×9

6×10

3×8

3×8

30°

30°

M

M

3043R2809

3045R2809
