Description
Drill Bit
Description

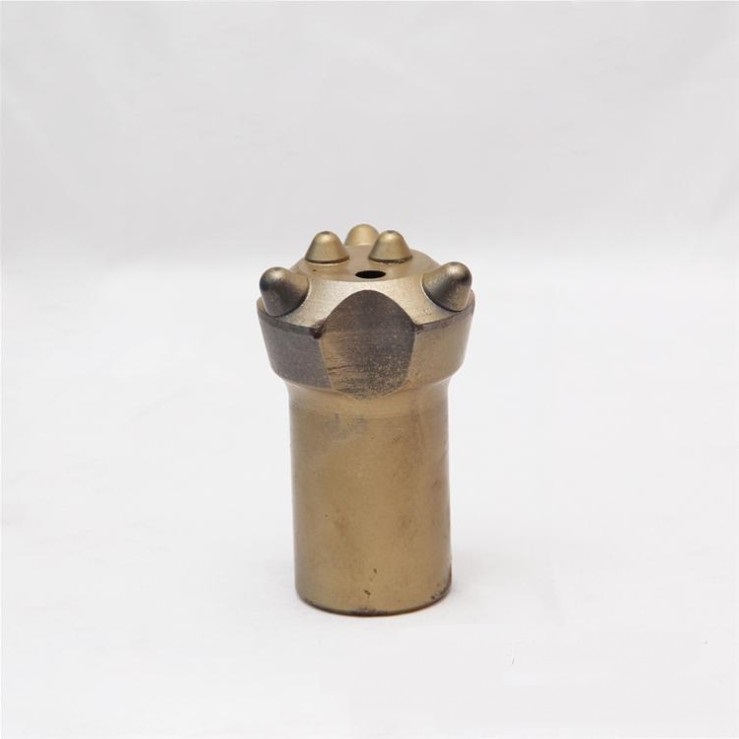

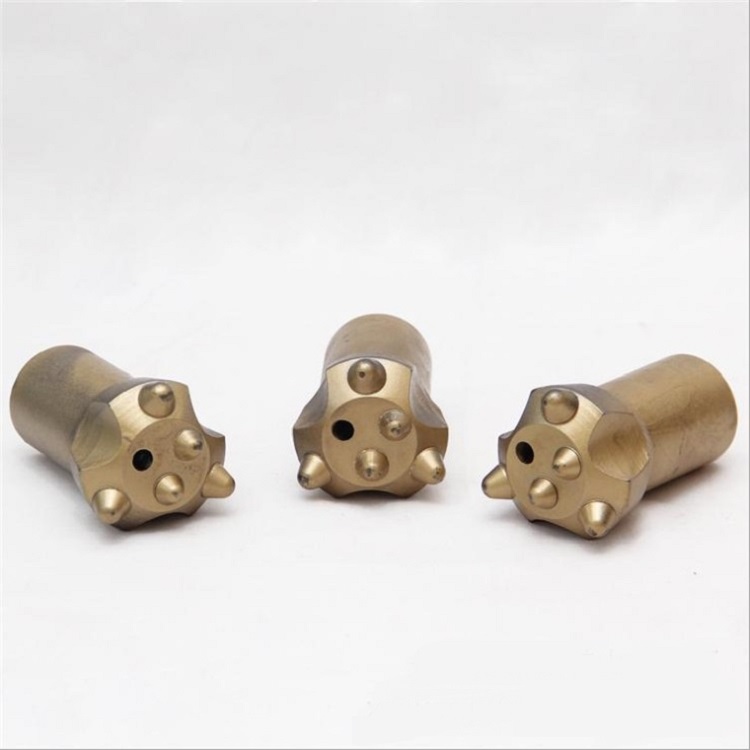

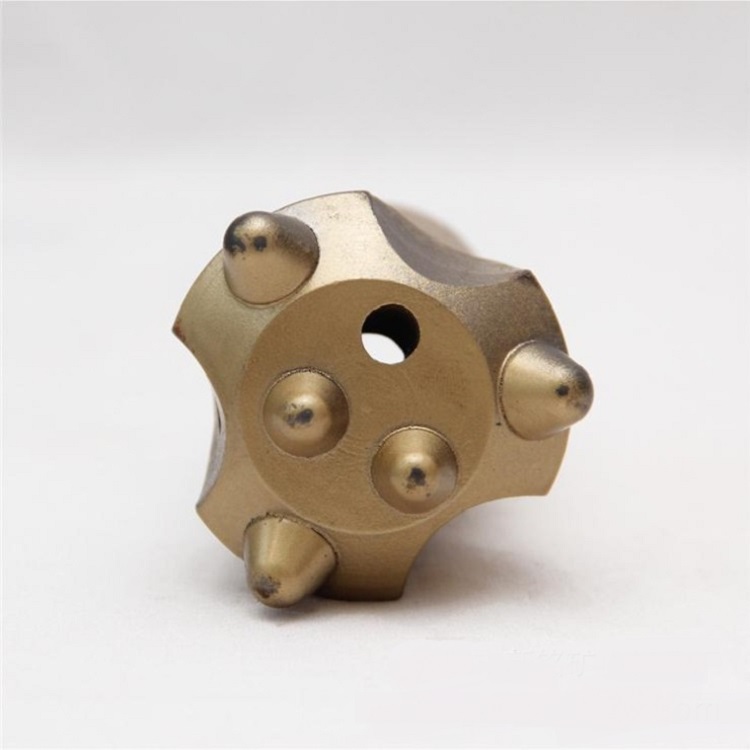

T51 thread drill bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
Type: thread drill bit
Applications
| Thread: | R25, R28, R32, R38, T38, T45, T51, ST58, ST68, GT60 Thread |
| Bit Diameter: | 33 to 152mm, or 1 2/7" to 6" |
| Tungsten Carbide: | Ballistic, Spherical, or Conical |
| Color: | Green or Based on Customer requirements |
| Material: | Tungsten carbide and high strength alloy steel |
| Processing: | CNC milling and proprietary heat treatment process |
| Rock Condition: | Bit face design is ideal for medium-hard to hard abrasive rock |
| Application: | Widely used in bench and long hole drilling |
