Description

Integral Steel Rod for  underground mining and small hole drilling

Product Content:

SUPERDRILL Integral Steel Rod, forged for excellence in underground mining and small hole drilling. With a focus on reducing impact energy expenses and improving drilling efficiency, this rod is crafted for durability and optimal performance. Explore the key features, applications, and specifications that make our Integral Steel Rod a trusted choice in the industry.

Features:

Integral Steel Rod is the preferred choice for hand-held drill machines in underground mining and small hole drilling. Equipped with small power rock drills, such as Air Leg rock drills and hand-held rock drills, it ensures cost-effective drilling, improved speed, and efficiency. Suitable for bore hole diameters from 30mm to 41mm, our rod is versatile and reliable in various mining applications.

Application:

• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling

Introduction:

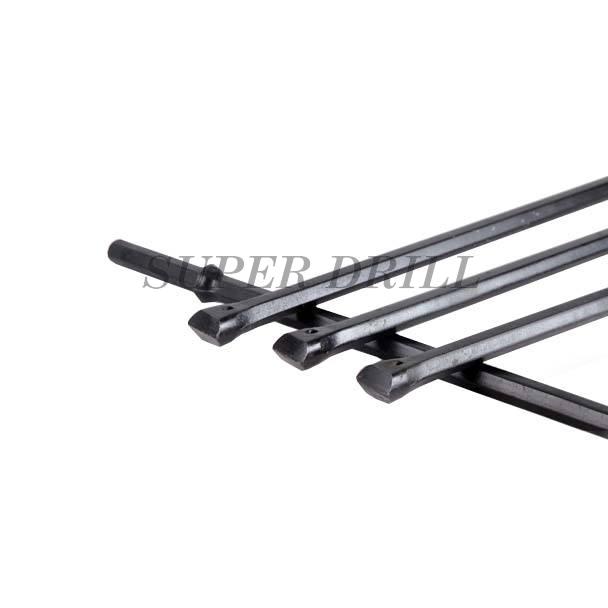

Integral Drill Steels are fixed-length rods with a shank at one end and a bit at the other. Designed for drilling to a depth equivalent to their effective length, the bit may consist of a single chisel-shaped tungsten carbide insert or three such inserts. To drill deep holes, the rods are used in a series, with each rod longer than the one used just before it. This series prevents jamming of the bit in the hole by reducing the bit diameter with each increase in rod length.

Product Specifications:

• Name: Integral Drill Rod

• H19x108mm:

  • Length: 400~4000mm
  • Chisel Bit Diameter: 23~35mm

• H19x108mm:

  • Length: 210~340mm
  • Chisel Bit Diameter: 17~22mm

• H22x108mm:

  • Length: 400~3200mm
  • Chisel Bit Diameter: 23~29mm

• H22x108mm:

  • Length: 400~8000mm
  • Chisel Bit Diameter: 26~41mm

Drawing: Refer to the provided drawings for visual representation.

Elevate your mining operations with our Integral Steel Rod – the epitome of durability, efficiency, and high performance. Trust in our commitment to delivering premium tools for your mining and drilling needs.
