Pneumatic Pick Hammer Hand Splitter

HomeProductsSplitting & Demolition Stone Wedge shims for splittingPneumatic Pick Hammer Hand Splitter
Pneumatic Pick Hammer Hand SplitterPneumatic Pick Hammer Hand Splitter

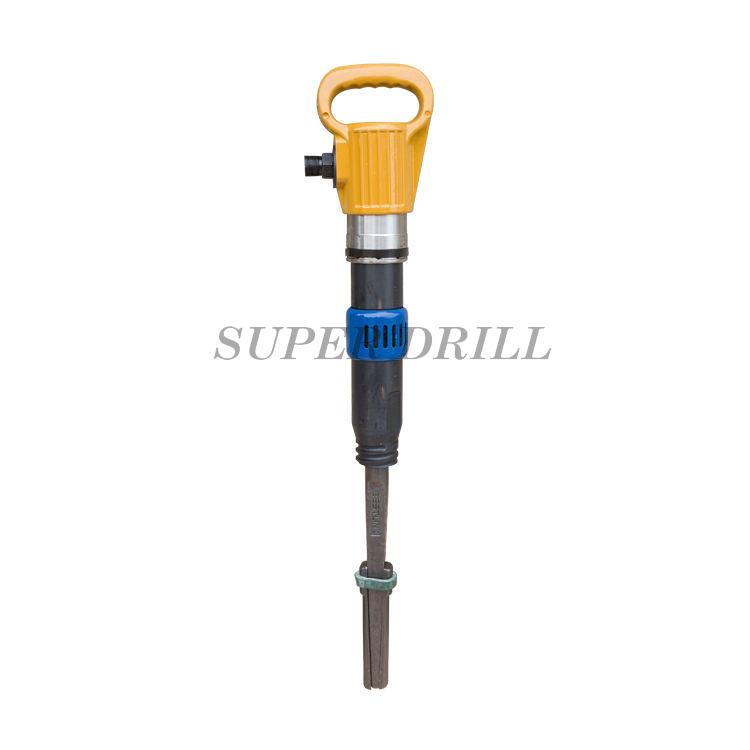

Pneumatic Pick Hammer Hand Splitter

  • Air pressure:Mpa 0.5
  • Impact force (allowance:-2%)(J) 39
  • Length(mm) 600
  • Weight(kg) 11
  • Category:Stone Wedge shims for splitting

  • Sent E-mail Inquiry

    Description

    Pneumatic Pick Hammer Hand Splitter

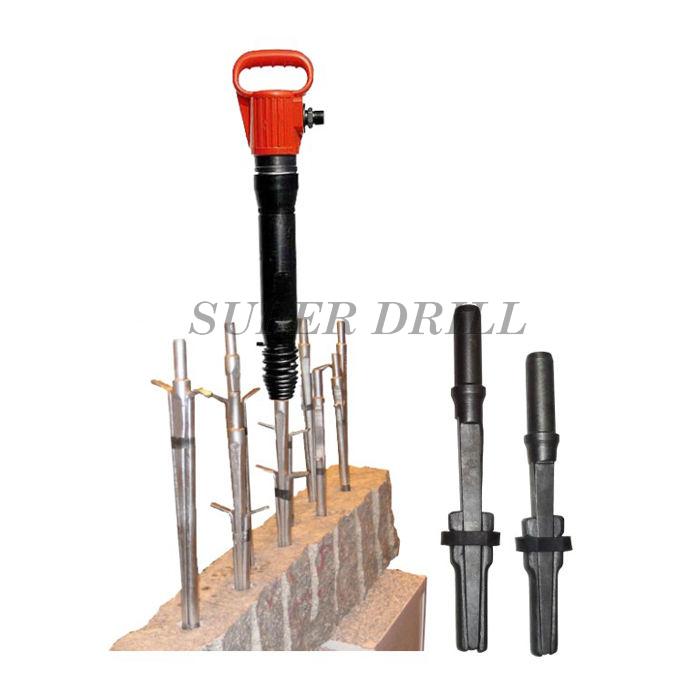

    To use the light-weight pneumatic hammer and suitable Plug and feathers for splitting the

    blocks, it will be more efficiency and less cost than the traditional hand splitter.

    Model

    G15

    Air pressure(Mpa

    0.5

    Impact force

    (allowance:-2%)(J)

    39

    Impact frequency(Hz)

    22.5

    WorKing power(KW)

    0.9

    Air consumption(m3/min)

    1.4

    Weight(kg)

    11

    Length(mm)

    600

    Overall dimension(mm)

    570*180*110

    *Shank:24×70mm

    Note: 1. At working site, sir pressure 0.5Mpa, the noise would be less than 115db

              2. Plug and feathers: normal length is 400mm, and hole from 32mm to 40mm, other

                  sizes of plug and feather are available upon your datailed requirement.
