Description

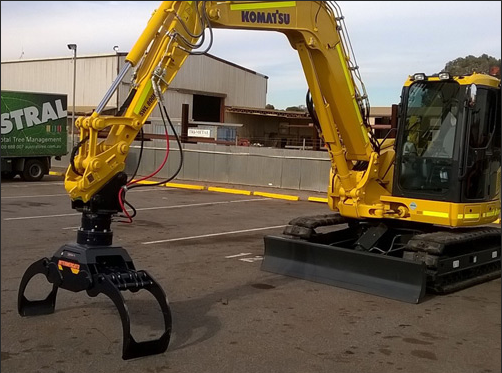

Mini Excavator Log Rotating Grappleis Hydraulic Rotators for forestry machines , The rotator design is based on the radial piston hydraulic motor, thus giving thesame highly efficient power seen in the motors.
Mini Excavator Log Rotating GrappleApplication

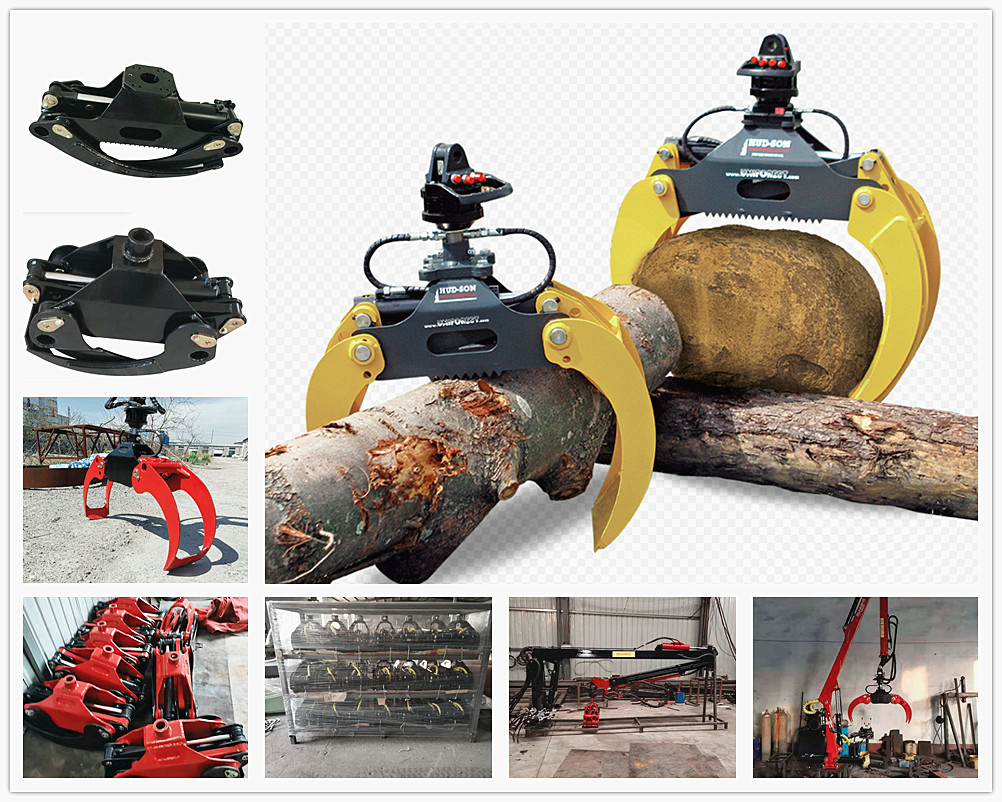

The Mini Excavator Log Rotating Grapple (hydraulic rotator) widely used in forestry log grapples
TheMini Excavator Log Rotating Grapple (hydraulic rotator) install on a loader log grapple
TheMini Excavator Log Rotating Grapple (hydraulic rotator) installed on a tractor log grapple
Mini Excavator Log Rotating Grapple parameter
|
No
|
Item
|
Data(1Ton)
|
3Ton
|
5Ton
|
6Ton
|
|
1
|
Rotation angle
|
unlimited
|
unlimited
|
unlimited
|
unlimited
|
|
2
|
Max rotation pressure
|
250 bar
|
250 bar
|
250 bar
|
250 bar
|
|
3
|
Max worKing pressure(closed)
|
300 bar
|
300 bar
|
300 bar
|
300 bar
|
|
4
|
Capacity
|
193cm3
|
330cm3
|
465cm3
|
670cm3
|
|
5
|
Connections
|
G1/4"
|
G3/8"
|
G3/8"
|
G 1/2"
|
|
6
|
Max axial load(static)
|
10kN
|
30kN
|
55kN
|
60kN
|
|
7
|
Max axial load(dynamic)
|
5kN
|
15kN
|
25kN
|
30kN
|
|
8
|
Max oil flow
|
10lpm
|
20lpm
|
20lpm
|
20lpm
|
|
9
|
Weight
|
10.2kg
|
16kg
|
28kg
|
36kg
|
