Description

Krupp HB 51 & HB 101 shank adapters

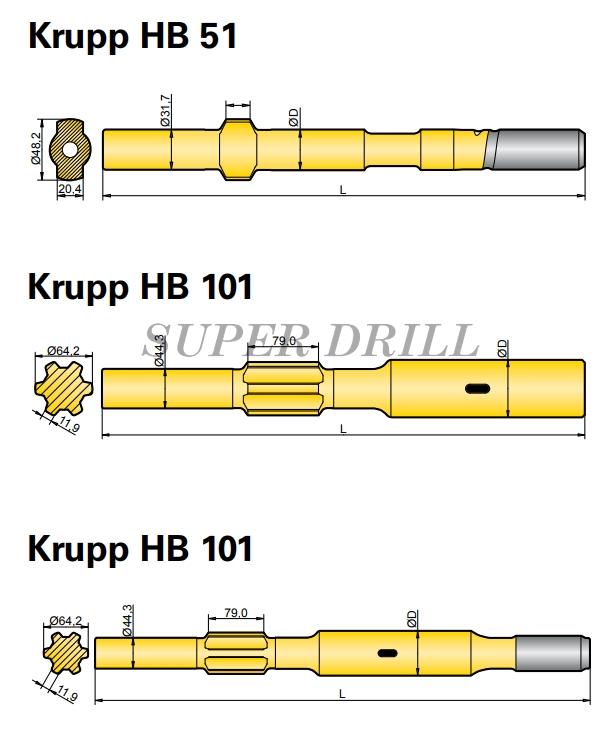

Krupp HB 51

• Product Number: 90515858 (R32)
• Product Code: 403-00131,10
• Length (L): 380 mm
• Diameter (D): 31 mm
• Weight: Approximately 2.1 kg
• Flushing Tube Diameter: 9-11 mm
• Shank Seal: 90002571

The Krupp HB 51 shank adapter is designed for Bench drilling applications, providing reliable performance with R32 threading.

Krupp HB 101 (Drifting)

• Product Number: 90516297 (T45)
• Product Code: 436-07901-F10
• Length (L): 540 mm
• Diameter (D): 64 mm
• Weight: Approximately 8.7 kg
• Flushing Tube Diameter: Not specified

The Krupp HB 101 shank adapter is tailored for drifting applications, ensuring compatibility with T45 threading.

Krupp HB 101 (Bench Drilling)

• Product Numbers:
  • 90516298 (T45)
  • 90516312 (T51)
• Product Codes:
  • 436-07902,10 (T45)
  • 437-07902,10 (T51)
• Lengths (L):
  • 690 mm (T45)
  • 711 mm (T51)
• Diameter (D): 64 mm
• Weights:
  • Approximately 11.0 kg (T45)
  • Approximately 11.7 kg (T51)
• Flushing Tube Diameter: Not specified

The Krupp HB 101 shank adapters for bench drilling are designed for versatility, accommodating both T45 and T51 threading.

If you have any further questions or need additional details about these products, feel free to ask!
