Hydraulic Quick Hitch Coupler

Description

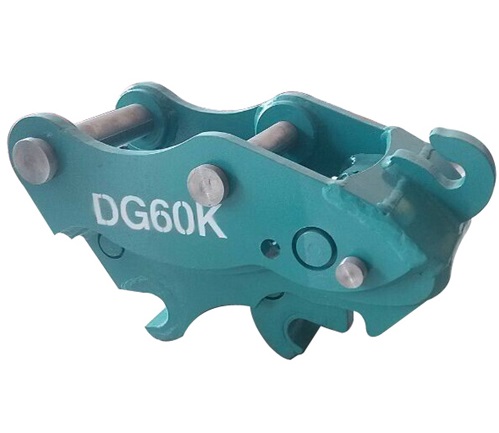

Hydraulic Quick Hitch Coupler

SUPERDRILL is a professional manufacture of excavator attachments. Hydraulic Quick Hitch Coupler is one of the most important attchments for excavators
DG series Quick hitch adopts new design with special steel material high intensity but light weight. No need to change the top bracket of the linked bucket and breaker.

Less malfuntion and easy to maintenance, Reasonable designed distance of pin make products fasten and reliable. Well-designed bases on Eurpen safe operation standard, can be mounted to all common hydraulic excavators as well to fastly connect hydraulic breaker, ripper, shear, compactor, grabble within 60 seconds, DG hydraulic quick hitch coupler are compatible with various brand of excavators including: DOOSAN, KOMATSU, CAT, SNAY, HYUNDAI R, CAT PALLET, VOLVO, KOBELCO, KATO, KUBOTA, JCB, CASE, GEHL etc

	Unit	DG MINIK	DG45K	DG55K DG60K	DG110K DG180K	DG200K DG240K	DG300K	DG350K DG400K
Overall Length	Mm	388	534-545	600	765	924-944	983-1050	1006-1173
Overall Height	Mm	246	307	310	388	492	574	558-610
Overall Width	Mm	175	258-263	270-280	353-436	449-483	543-568	606-663
Pin to Pin Center Distance	Mm	80-150	230-270	290-360	380-420	460-480	473-540	550-620
Foream Open Width	Mm	80-140	155-170	180-200	232-315	306-340	375-411	416-469
Oil Cylinder Retractable gap	Mm	170-206	205-275	340-450	340-486	256-390	413-590	520-590
Top to Bottom Pin gap	Mm	159	195	195	220	275	300	360
Pin Diameter	Mm	25-40	45-50	50-55	60-70	70-80	80-90	90-120
Weight	Kg	25	50-60	80	120-130	280-290	420-430	450-580
WorKing Pressure	Kg/c㎡	40-380	40-380	40-380	40-380	40-380	40-380	40-380
Required Oil Flow	L/min	10/20	10/20	10/20	10/20	10/20	10/20	10/20
Suitble Excavator	Ton	1.5-4	4/7	5/8	9/19	17-23	23-30	33-45
