Description

Hydraulic Drill Rig QCDZC

Product Instruction

China’s first Down The Hole (DTH) Driller was successful designed and developed and won the national patent in 2004.

ProDrill Equipment is the only manufacturer who has grown up with professional stone mining practice and experience in the past 30 years, is reliable and trustworthy.

superdrill Equipment is the first to put forward the concept of “ Cool Mining Process in Stone Quarry” in the worldwide stone industries, and successfully use “Cool Mining Process” in its own quarries. With the wide application of new technology, the stone mining industries start to give up the traditional mining method and turn to the green and environment protection mining process.

Our products are: Hydraulic-pneumatic DTH Driller, Full Pneumatic DTH Driller, Pneumatic Driller (horizontal/vertical), Hydraulic Driller (horizontal/vertical), Engine powered Drill Rig, Electric Drill rig, etc.

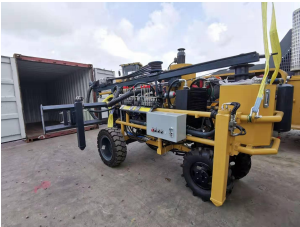

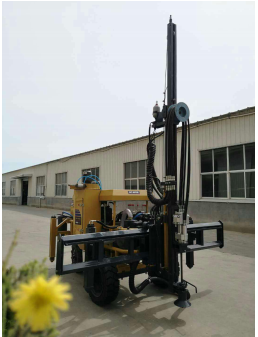

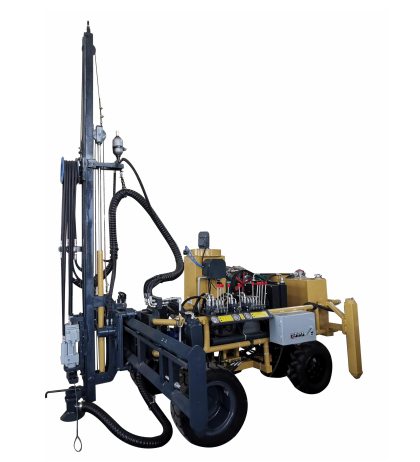

Product & Model : QCDZC-90 Hydraulic Drilling Rig — Electric

Main Technical Data:

Product Feature:

1.This machine consists of operation system, travelling system,

hydraulic system, dust collection system, side-way movement, air

compressor system and position fixing system.

2. Operation system is centralized at one side, pressure gauges are

equipped. It is more convenient for operator to operate and observe

the running status easily.

3. Wheel-type travelling system is more suitable for complex worKing

site.

4.Four adjustable landing legs can make the machine keep level on

uneven surface.

5. Air compressor is integrated

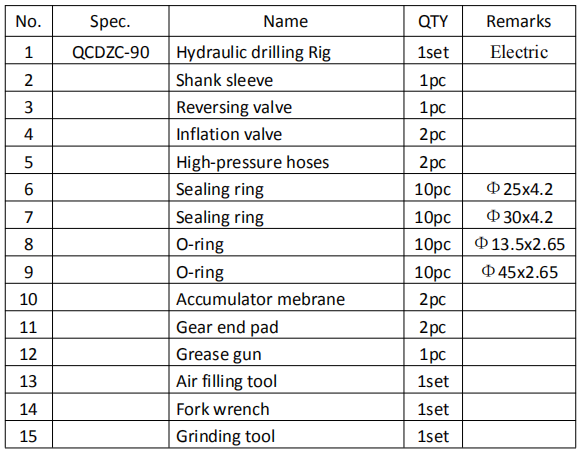

Packing List
