Description

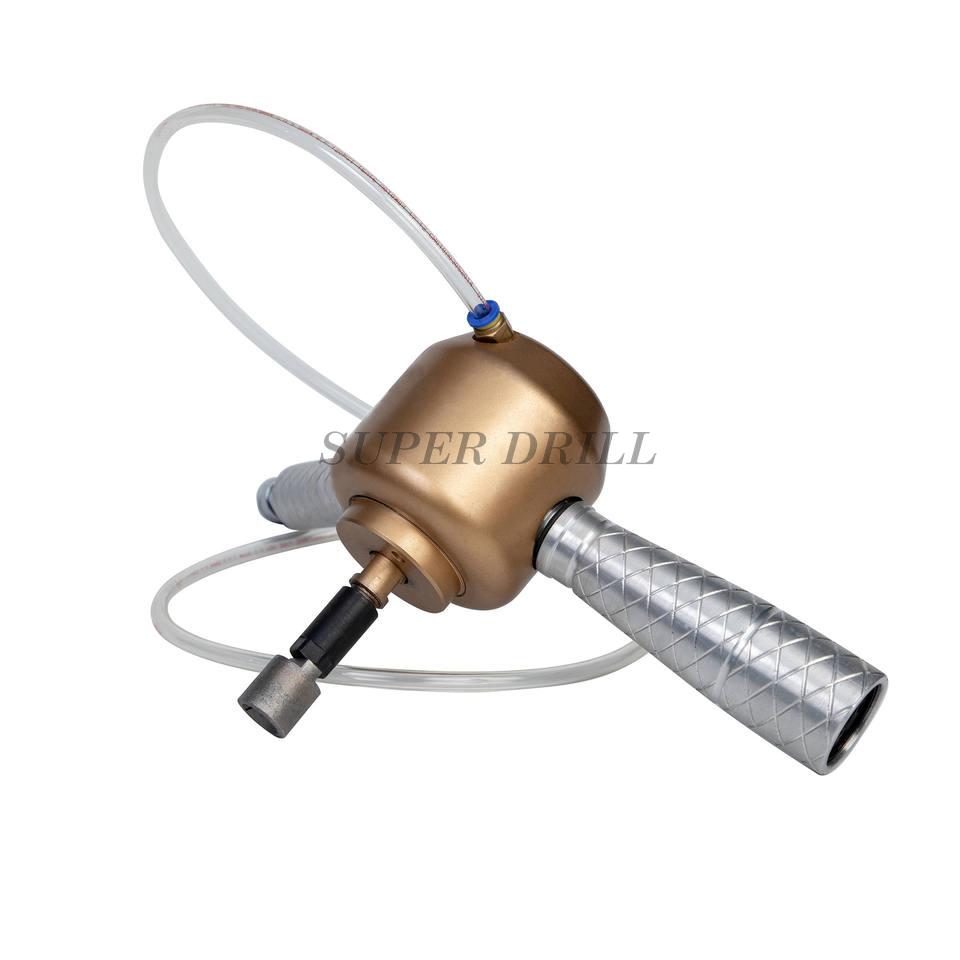

Hand Held Pneumatic button bit Grinding machine
SUPERDRILL is high powered grinding head, primarily designed to be used in the powerful hand held pneumatic button bit grinder, is configured for hand-held use by ergonomic placement of a very efficient throttle and support handle. Simplicity in design combined with the latest manufacturing techniques gives the operator a powerful tool for the most demanding job.leading the technological evolution of button bit grinding equipment is our aim. Air hand-held Button bit grinder machine (CME button bit grinder,pneumatic button bit grinder) Grinding machine for button bits, grinding pins, Hexagon grinding cup for drill bit, grinding carbide, button bit, DTH bit, tungsten carbide, air flush, water flush, button bit grinder is used for grinding carbide on button bits such as DTH-button bits, and top hammer percussive bits.
Our Air Grinders require a clean and dry air supply of 100 psi and 80 cfm passing through an in-line oiler to supply lubrication to the grinder.

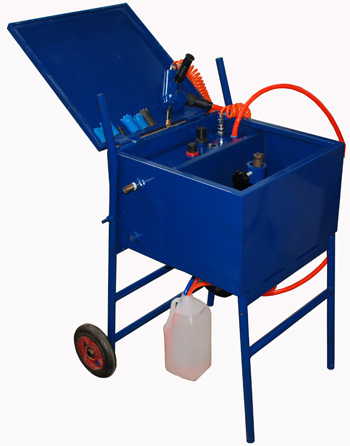

And there's option for bits support car with recycling water pump and cart.
Air pressure, max | 5-7 bar (100psi) |
Air consumption | 2m3/min (50ft3/min) |
Rate power | 1.5kw |
Idling speed | 20,000 rpm |
Water flushing presuure, max | 4 bar (60psi) |
Hose diameter, air | 19 mm(1/2) |
Hose diameter, water | 6 mm |
Weight, exclude hoses | 3.2 kg |
Sound level | 92 dB (A) |
Grinding button size | 6-25 mm |
Advantage of SUPERDRILL Button Bits Grinder:
1). Easy operation-----it's easy to operate.
2). Low air consumption-----allows grinding at lower compressed air. Fuel saving.
3). Quick chuck-----it's suitable for difference type of grinding cups.
4). Protable-----Light weight, hand held type.

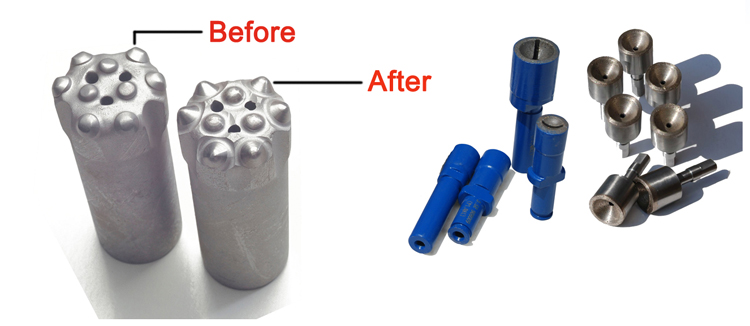

2. Grinding pins
Through changing the quick chuck, the operator can use different types of grinding cup(as called grinding pin) on this button drill bits grinding machine, such as:
a.the cups with WING drive(8mm shank)
b.SVK's san-drive grinding cup with 9mm shank
c.Atlas Copco's 55-drive grinding cup
d.the cups from CME with hex-drive.
For bit's button shape | For bit's button size (mm) |
spherical buttons / ballistic buttons | 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 |
bit's body steel removal | 7-8 9-10 11-12 13-14 15-16 17-18 19-20 |
