Description

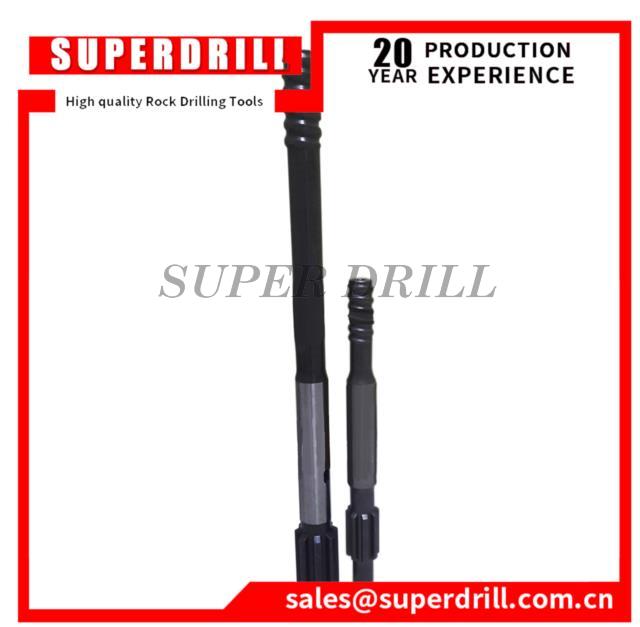

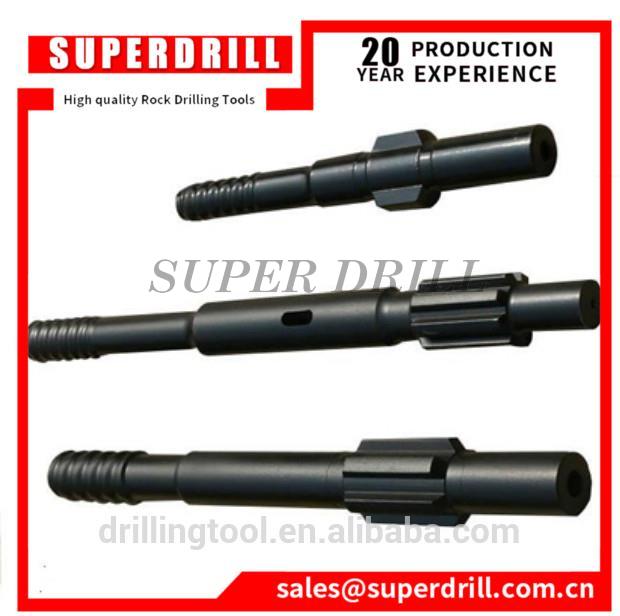

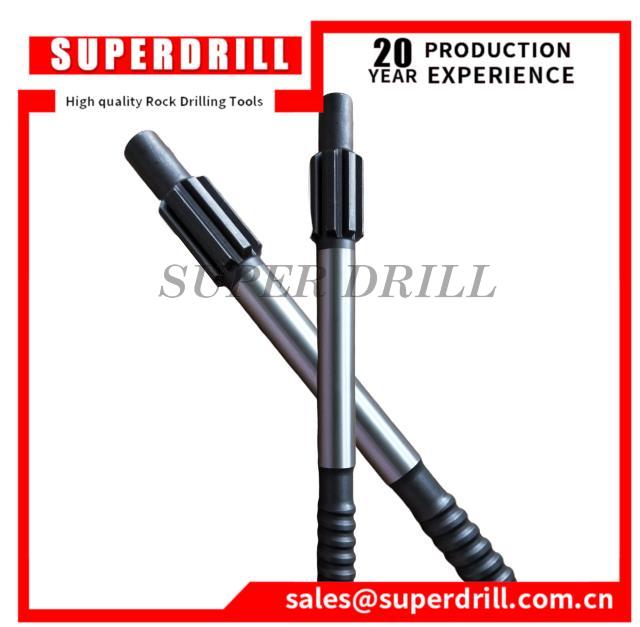

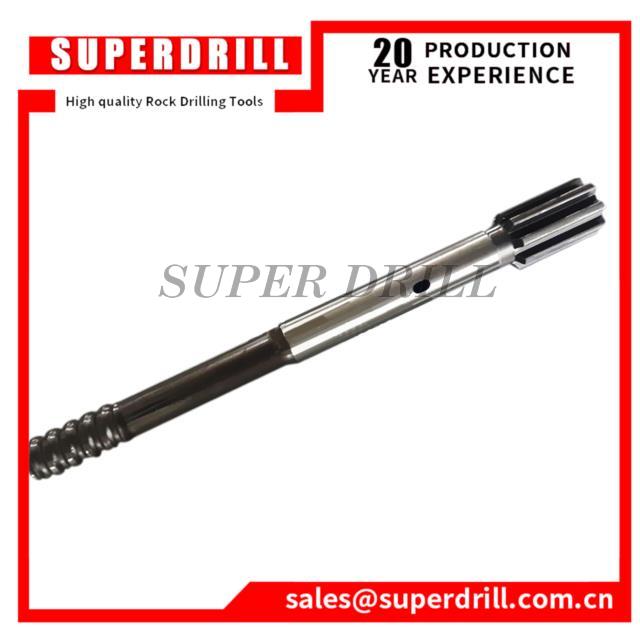

shank adapters COP 1432, COP 1532, COP 1440, COP 1838 HD, COP 1838 ME
High grade tungsten carbide inserts Bit bodies manufactured from high grade steel and processed using state-of-the-art CN
Descripetion
In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
Product Technical Reference
Shank Adapters COP 1432, COP 1532, COP 1440, COP 1838 HD, COP 1838 ME
| Part Number | Product Code and Brief Description | Thread | Length (mm) | Weight (kg) |
| 4148301077 | COP 1432, COP 1532, COP 1440, COP 1838 HD, COP 1838 ME [G1] | R32 | 435 | 3.9 |
| 4148301078 | COP 1432, COP 1532, COP 1440, COP 1838 HD, COP 1838 ME [G2] | R38 | 435 | 4.2 |
| 4148301079 | COP 1432, COP 1532, COP 1440, COP 1838 HD, COP 1838 ME [G3] | T38 | 435 | 4.2 |
| 4148301080 | COP 1432, COP 1532, COP 1440, COP 1838 HD, COP 1838 ME [G4] | R32 | 525 | 4.8 |
| 4148301081 | COP 1432, COP 1532, COP 1440, COP 1838 HD, COP 1838 ME [G5] | T38 | 525 | 5 |
