Description
SUPERDRILLcould supply the COP series DTH Bit with cemented carbide buttons have very good wear-resistant. Buttons are strong in the mining process and could meet requirements of various rocks , and the service lifetime is very long.

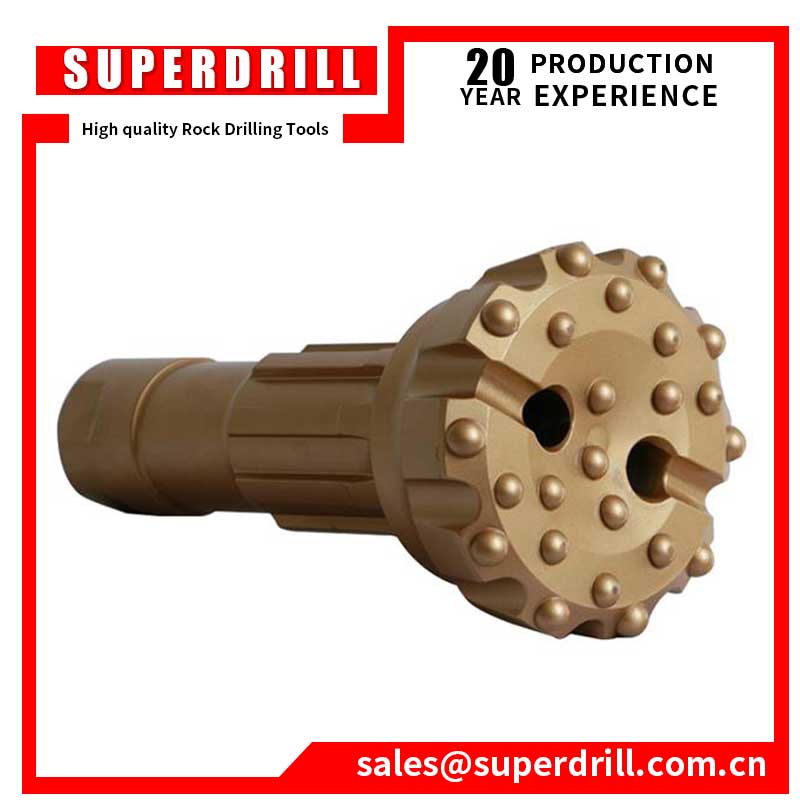

Product Name:COP Shank DTH Button Bit
Shank Type:COP32, COP34, COP44, COP54, COP64,
Bit Diameter:85mm-203mm
Bit Face Design:Flat Face, Convex Face, Concave Face, Drop Center, Double Gauge.
|
COP Shank DTH Button Bit for Mining
|
|||||
| Shank Type | Diameter in mm | Air Holes No. | Gauge Buttons | Face Buttons | Approx. Weight |
| COP 32 | 85 | 2 | 6*13mm | 4*12mm | 4.2 KGS |
| 90 | 2 | 7*13mm | 5*12mm | 4.5 KGS | |
| 95 | 2 | 7*13mm | 6*12mm | 4.7 KGS | |
| 100 | 2 | 7*13mm | 6*12mm | 5.0 KGS | |
| 105 | 2 | 8*12mm | 7*12mm | 5.2 KGS | |
| COP 34 | 85 | 2 | 6*13mm | 4*12mm | 4.2 KGS |
| 90 | 2 | 7*13mm | 5*12mm | 4.5 KGS | |
| 95 | 2 | 7*13mm | 6*12mm | 4.8 KGS | |
| 100 | 2 | 7*13mm | 6*12mm | 5.0 KGS | |
| 105 | 2 | 8*12mm | 7*12mm | 5.5 KGS | |
| COP 44 | 105 | 2 | 7*14mm | 6*13mm | 8.2 KGS |
| 110 | 2 | 7*14mm | 6*13mm | 8.5 KGS | |
| 115 | 2 | 8*14mm | 7*13mm | 8.9 KGS | |
| 120 | 2 | 8*16mm | 7*13mm | 9.5 KGS | |
| 127 | 2 | 8*16mm | 7*13mm | 10.8 KGS | |
| COP 54 | 135 | 2 | 8*16mm | 8*13mm | 15.0 KGS |
| 140 | 2 | 8*17mm | 7*14mm | 16.0 KGS | |
| 146 | 2 | 8*18mm | 7*14mm | 17.0 KGS | |
| 152 | 2 | 8*17mm | 8*14mm | 17.5 KGS | |
| 165 | 2 | 8*18mm | 9*16mm | 18.5 KGS | |
| COP 64 | 152 | 2 | 8*17mm | 8*14mm | 23.5 KGS |
| 165 | 2 | 8*18mm | 9*16mm | 24.5 KGS | |
| 171 | 2 | 8*18mm | 10*16mm | 26.5 KGS | |
| 190 | 3 | 9*18mm | 11*16mm | 28.5 KGS | |
| 203 | 3 | 9*18mm | 12*16mm | 32.0 KGS | |
