Description

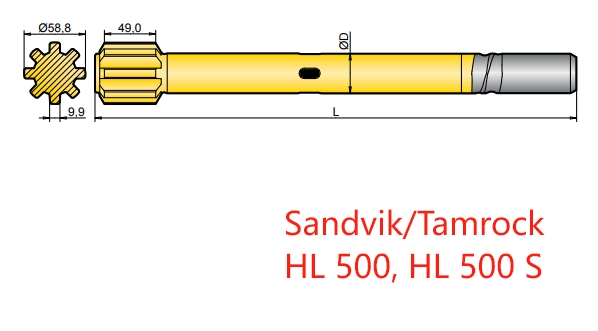

The Sandvik/Tamrock series includes several drifting shank adapters designed for production drilling applications. Below are the detailed specifications for each product:
| Product Number | Product Code | Thread Type | Length (L) mm | Diameter (D) mm | Weight (approx. kg) | Flushing Tube Diameter (mm) |
|---|---|---|---|---|---|---|
| 90516160 | 403-09401,10 | R32 (1¼”) | 460 | 38 | 3.9 | - |
| 90003519 | 469-09401,10 | TC35 (1¼”) | 460 | 39 | 4.2 | - |
| 90516170 | 404-09401,10 | R38 (1½”) | 460 | 38 | 4.2 | - |
| 90516186 | 435-09401,10 | T38 (1½”) | 460 | 38 | 4.2 | - |
These Sandvik/Tamrock Drifting Shank Adapters are engineered to enhance the performance and efficiency of your drilling operations. If you have any questions about these products or would like to learn more about our custom drill accessories, please feel free to reach out. We are here to help you find the best solutions for your needs!
