90515834, 90516343, 90516125 - Atlas Copco COP 1240 shank adapters for Bench drilling

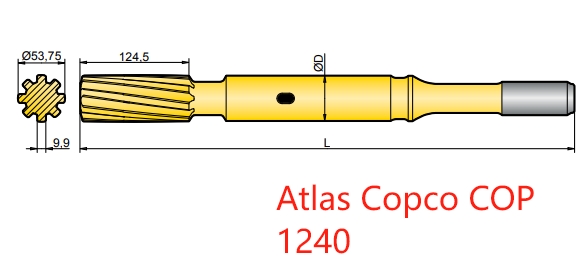

Atlas Copco COP 1240 Shank Adapters
| Product Number | Product Code | Thread Type | Length (L) mm | Diameter (D) mm | Weight (approx. kg) | Flushing Tube Diameter (mm) |
|---|---|---|---|---|---|---|
| 90515834 | 403-13302,10 | R32 (1¼”) | 565 | 52 | 6.4 | - |
| 90516343 | 469-13302,10 | TC35 (1⅜”) | 565 | 52 | 6.4 | - |
| 90516125 | 435-13302,10 | T38 (1½”) | 565 | 52 | 6.6 | - |
The Atlas Copco COP 1240 Shank Adapters are designed for bench drilling applications. Each adapter has a length of 565 mm and a diameter of 52 mm. The weights are 6.4 kg for both the R32 and TC35 variants, while the T38 variant weighs 6.6 kg. These adapters are engineered for high performance in various drilling conditions, ensuring effective torque and reliability during operations. If you have any questions about these products or need further assistance, please feel free to reach out. We're here to help you find the best solutions for your drilling needs!
