YT24 Pusher Leg Rock Drills for underground mining, tunneling

Description

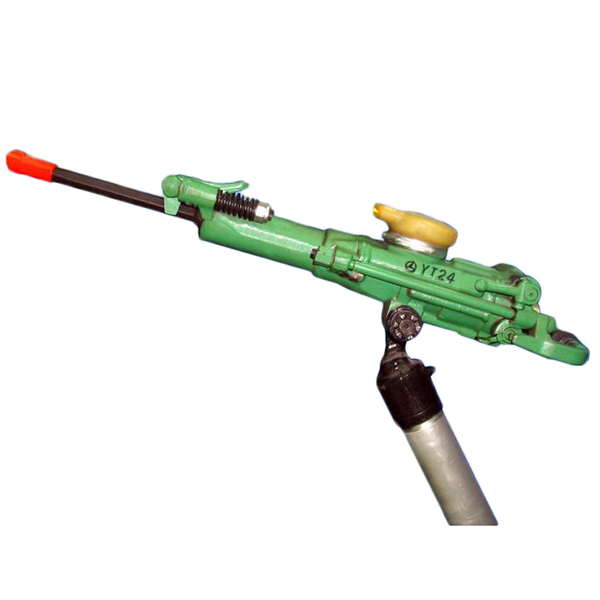

rock drilling tools manufacturer Prodrill YT24 Air-Leg (Pusher Leg) Rock Drill for underground tunneling, drifting.

Weight: 24 kg
Size: 678*228*184 mm
Air Pressure: 0.63 Mpa
Air Consumption: ≤67 L/s
Impact Frequency: ≥31 Hz
Air Hose Size: 19 mm
Water Hose Size: 13 mm
Bore Diameter: Φ34～Φ42 mm
Drilling Depth: 5 m
Shank Size (Hex.*L): 22*108±1 mm

YT24 Air-leg Rock Drill, an important tool for rock drilling operations in mines, railway, communication and water conservancy projects, etc., is most suitable for maKing horizontal and inclined blast holes in medium-hard and hard rocks with a hardness of f8~18.
May be used together with FT140B or FT140BD Air-leg and FY200B Line Oiler with transparent casing. The tool can also be mounted on a rig or a wagon.

Air-leg Specifications:
Model FT140B FT140BD
Length 1687 mm 1400 mm
Feed Length 1250 mm 965 mm
Weight 15.6 kg 13.9 kg
FY200B Line Oiler Specifications:
Capacity 200 ml
Weight 1.02 kg

Operation & maintenance：
Besides observance of the general safety precautions for rock drilling operations, particular attention should be paid to the following:
The rifle nut and the piston are matched with left-handed threads. Be careful with the direction of rotation during assembling and disassembling.
When connecting the drill to the air and water supplies, check carefully if the wire clips (32)(36) are entirely and correctly set in the respective semi-circular grooves of the backhead (30). Check frequently the wear on the clips and timely replace the worn-out or broken one or broken one to avoid the shooting out of the swivel(55)(58) or the connector when the air or water is on.
Before operation, fill the line oiler with lubrication oil up to the required level. The drill should not be run without proper lubrication (recommended lube oil N46 and N22, Chinese National Standard GB443-84).
After operation, first turn off the water, lightly run the drill for a few seconds, blow out the residual water drops to prevent the parts from being corroded.
If the drill is often used, should maintenance it regularly to ensure the inside parts cleaning. Especially pay attention to change the worn parts and lose efficient parts.
