Description
90515888, 90515899, 90515981, 90515996, 90515889, 90516341, 90515900, 90515982 - Atlas Copco COP 1036, COP 1038, COP 1238 shank adapters for Bench and Production Drilling

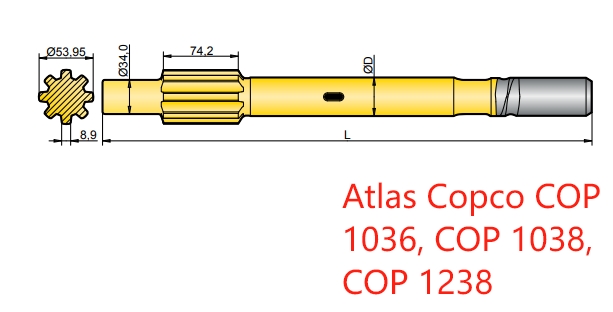

Atlas Copco COP 1036, COP 1038, COP 1238 Shank Adapters
| Product Number | Product Code | Thread Type | Length (L) mm | Diameter (D) mm | Weight (approx. kg) | Flushing Tube Diameter (mm) |
|---|---|---|---|---|---|---|
| 90515888 | 403-03003,10 | R32 (1¼”) | 575 | 38 | 4.6 | - |
| 90515899 | 404-03003,10 | R38 (1½”) | 575 | 38 | 4.7 | - |
| 90515981 | 435-03003,10 | T38 (1½”) | 575 | 38 | 4.9 | - |
| 90515996 | 436-03003,10 | T45 (1¾”) | 575 | 45 | 5.8 | - |
| 90515889 | 403-03003-13.10 | R32 (1¼”) | 575 | 45 | 5.2 | - |
| 90516341 | 469-03003-13,10 | TC35 (1¼”) | 575 | 45 | 5.4 | - |
| 90515900 | 404-03003-13.10 | R38 (1½”) | 575 | 45 | 5.4 | - |
| 90515982 | 435-03003-13.10 | T38 (1½”) | 575 | 45 | 5.4 | - |
The Atlas Copco COP 1036, COP 1038, and COP 1238 Shank Adapters are designed for both bench and production drilling applications.
