Description

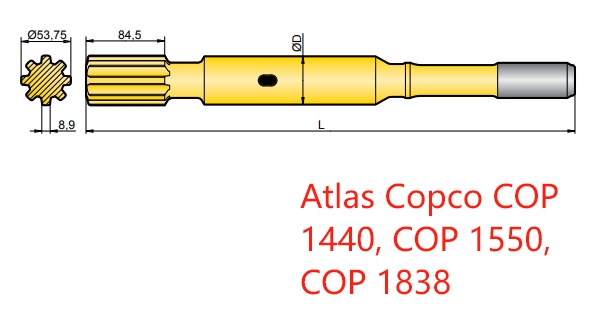

Atlas Copco COP 1440, COP 1550, and COP 1838 shank adapters for Bench drilling
Product Numbers: 90516158, 90516342, 90516184, 90516206, 90516217
| Product Number | Product Code | Thread Type | Length (L) mm | Diameter (D) mm | Weight (approx. kg) | Flushing Tube Diameter (mm) |
|---|---|---|---|---|---|---|
| 90516158 | 403-09103-18,10 | R32 (1¼”) | 525 | 52 | 5.7 | - |
| 90516342 | 469-09103-18,10 | TC35 (1⅜”) | 525 | 52 | 5.8 | - |
| 90516184 | 435-09103-18,10 | T38 (1½”) | 525 | 52 | 6.1 | - |
| 90516206 | 436-09103,10 | T45 (1¾”) | 525 | 52 | 6.5 | - |
| 90516217 | 437-09103,10 | T51 (2”) | 525 | 52 | 6.9 | - |
The Atlas Copco COP 1440, COP 1550, and COP 1838 Shank Adapters are specifically designed for bench drilling applications. Each adapter has a consistent length of 525 mm and a diameter of 52 mm. The weights vary slightly depending on the thread type, ranging from 5.7 kg for the R32 variant to 6.9 kg for the T51 variant.
These adapters are engineered to provide reliable performance and effective energy transfer during drilling tasks, maKing them suitable for various applications in the field. If you have any questions about these products or need further assistance, please feel free to reach out. We're here to help you find the best solutions for your bench drilling needs!
