Moert H 50, H 60, H 70 Shank Adapters

Description

Moert H 50, H 60, H 70 shank adapters

Product Numbers:

H 50: 90516156 (R32)
H 60: 90516168 (R38)
H 70: 90516180 (T38)

Specifications

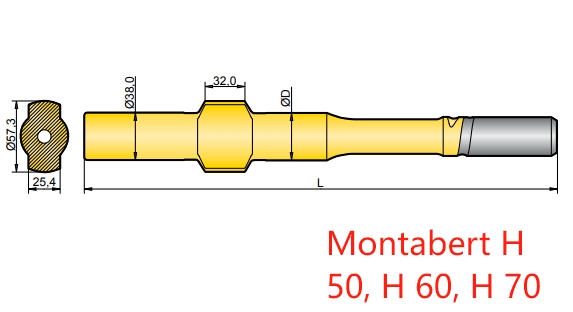

Feature	H 50 (R32)	H 60 (R38)	H 70 (T38)
Product Code	403-01131,10	404-01131,10	435-01131,10
Length (L)	380 mm	390 mm	390 mm
Diameter (D)	38 mm	38 mm	38 mm
Weight	Approximately 2.6 kg	Approximately 3.1 kg	Approximately 3.1 kg
Flushing Tube Diameter	9-11 mm	9-11 mm	9-11 mm
Shank Seal	90002571	90002571	90002571

The Moert H 50, H 60, and H 70 shank adapters are designed for drifting applications, providing compatibility with various thread types (R32, R38, and T38). Their robust construction ensures durability and efficiency in drilling tasks.
