Description

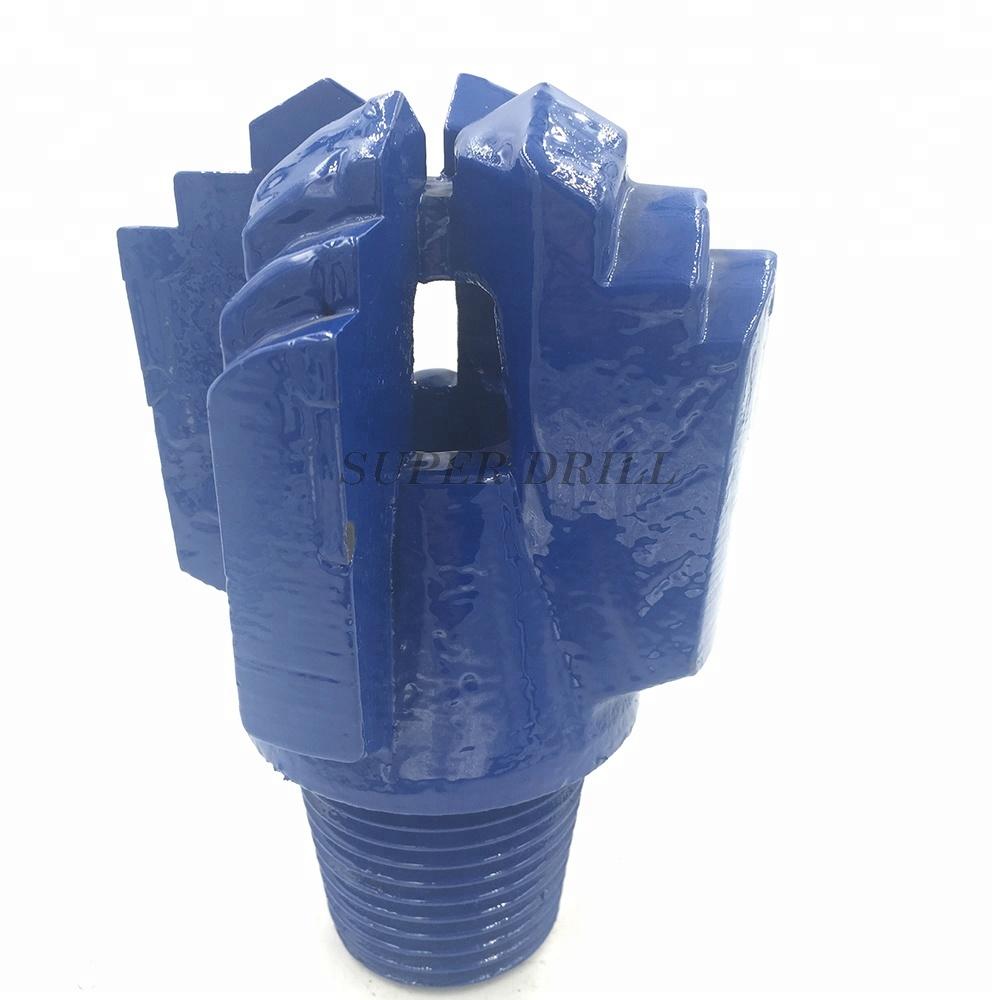

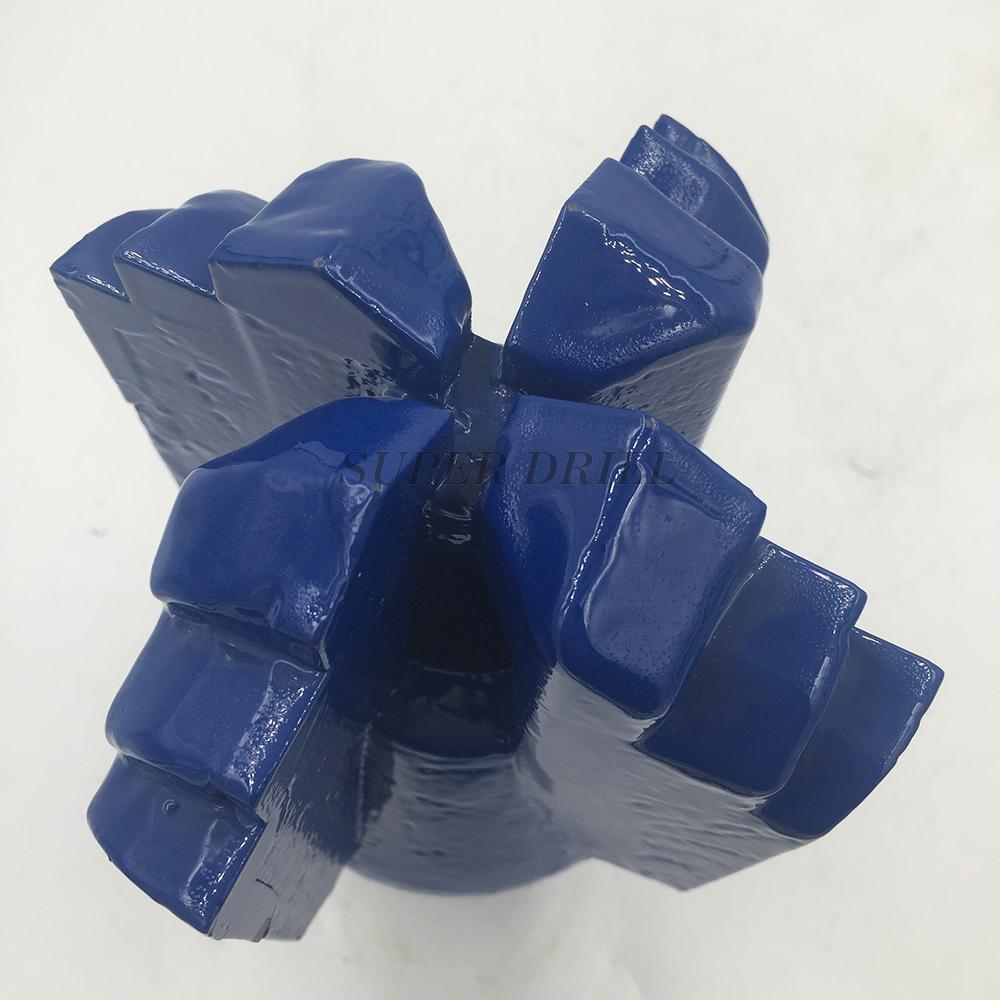

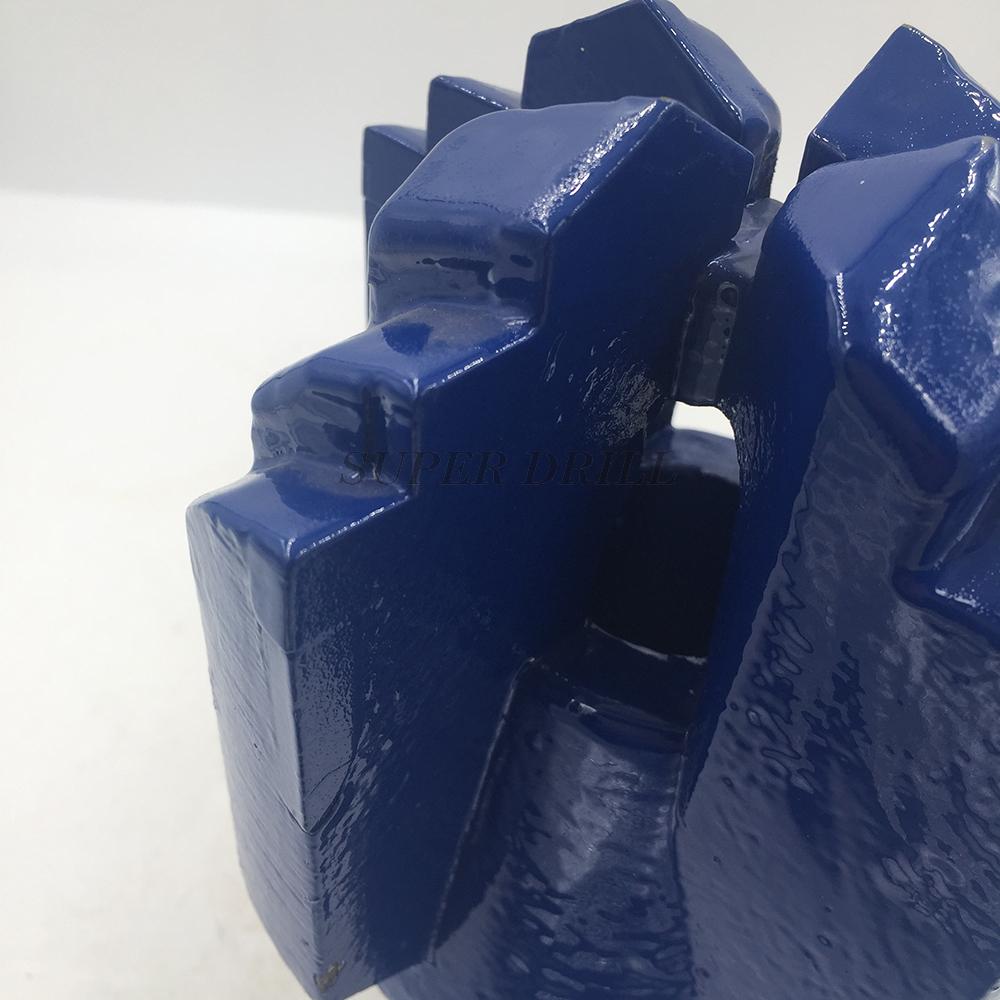

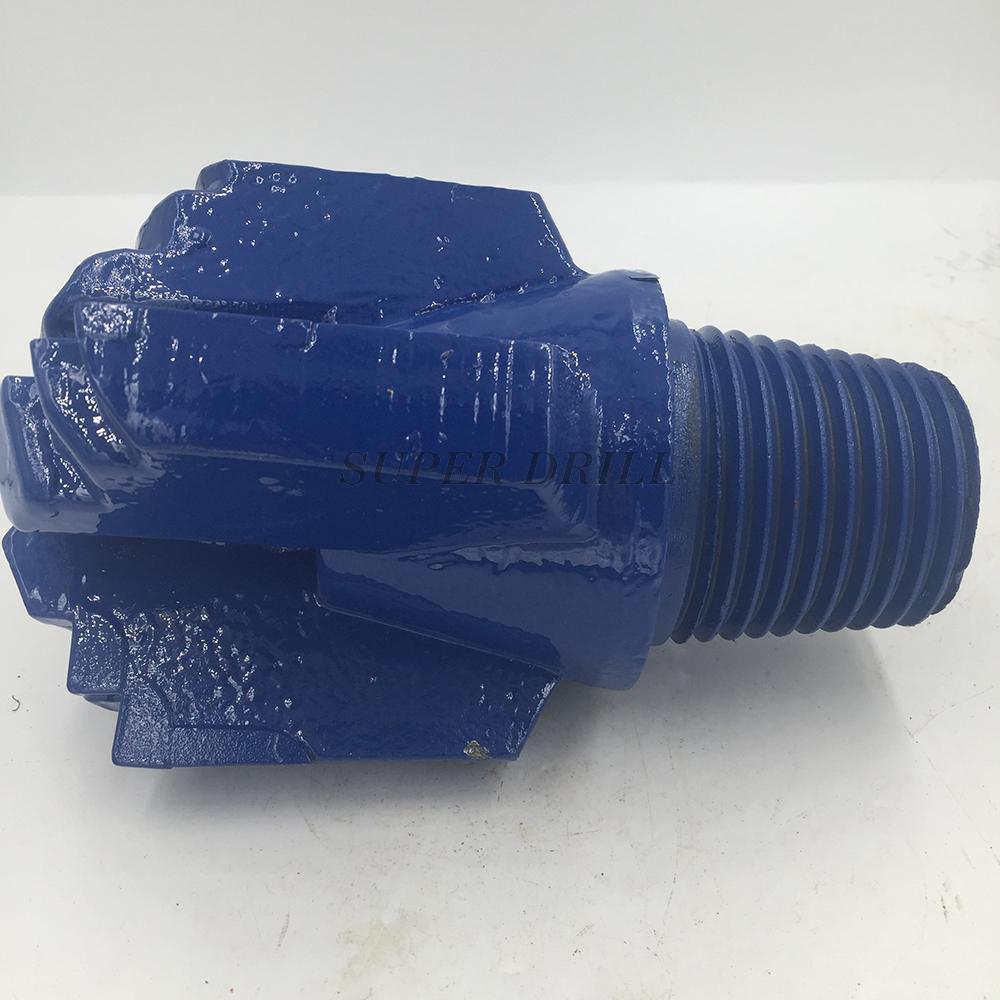

Superdrill 4 wings step drag bits are one piece construction of alloy steel cast with tungsten carbide cutting tips and gauge sides to ensure longer life. It has 4 wings and 4 flushing holes. 4 wings step drag bits, are more durable and lasting than 3 wings step drag bits, because of cutting structure, but will penetrate more slowly. 4 wing step drag bits are more stable and tend toward drilling a straighter hole, as its 4 wings have more stable structure and do not make a deviation in the drilling.
4 wings step drag bits are economical tools when drilling softer geological formations and shallower depths, they are primarilydesigned for soft tomedium formations, such as Clay, Loam, Silt ,Mostsoft-to-medium soilsthat have some moisture, etc. And also step drag bits are recommended for drilling in Mining, Exploration, Environmental, Water well, Geo Exchange, etc.
PRODUCT SPECIFICATION
|
Type |
Dimension |
Thread Connection |
|
|
inch |
mm |
||
|
3-wing Step Type |
2 ~ 17 1/2 |
51~445 |
N Rod, 2 3/8” ~ 6 5/8” API REG/IF |
|
3-wing Chevron Type |
2 1/2 ~ 8 |
64~203 |
N Rod, 2 3/8” ~ 4 1/2” API REG/IF |
|
4-wing Step Type |
7 7/8 ~ 17 1/2 |
200~445 |
3 1/2” ~ 6 5/8” API REG/IF |
|
4-wing Chevron Type |
2 5/8 ~ 6 1/2 |
67~165 |
N Rod, 2 3/8” ~ 3 1/2” API REG/IF |
|
Drag Bit Blades |
5 1/2 ~ 17 1/2 |
140~4445 |
|
|
|
Bits Type |
|
3-wing Step/ Chevron |
|
|
4-wing Step/ Chevron |
|
|
Drag Bit Blades |
|
|
|
|
|
51~445mm |
|
|
67~445mm |
|
|
140~4445mm |
|
|
|
Thread Connection |
