Description

Breakout Bench for DTH hammers, from size 3.5” to 10”

• DTH Hammer Size: 3.5” – 10”
• Bench Size: 1060*930*1050mm
• Weight: 800kg
• Max Tightening Torque: 67 kN*m(50ftlb)
• Max Loosening Torque: 81 kN*m(60ftlb)
• Operating Height: 800mm
• Hydraulic Pressure Range: 0-20 Mpa
• Power: 3Kw, 220V, 50Hz
• Chain Rotation Speed: less than 10 rpm
• Piston Driver Speed: 1.8m per minute

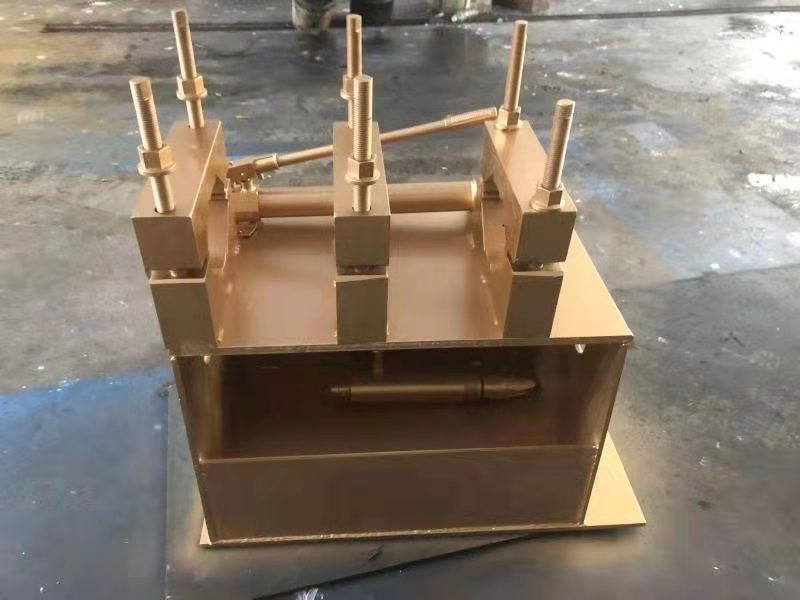

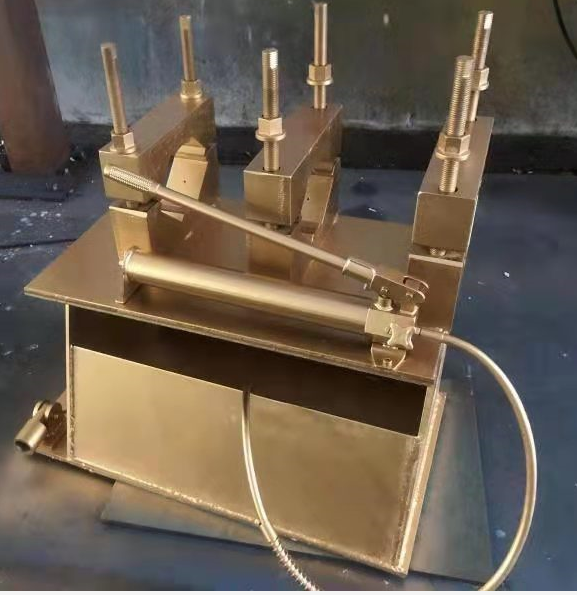

• Breakout bench hand hold operation method
  1. Put hammer on the bench.
  2. Adjust the position of hammer and wrench; use wrench to block the top sub side of hammer; let wrench and jack in the same face.
  3. Fix K-shaped base with nut.
  4. Fix wrench with nuts.
  5. Shake handle of Jack slowly till top sub away from hammer.
  6. After top sub dismantled, grease the jack, release nuts, discharge the K-shaped base and turn around the Hammer.
  7. Adjust the position of hammer and wrench; use wrench to block the drive chuck of hammer; let wrench and jack in the same face.
  8. Fix hammer
  9. Fix K-shaped base and the wrench with nut.
  10. Shake handle of Jack slowly till drive chuck away from hammer.

Breakout bench automatic operation

Specifications

DTH Hammer Size:  3.5’’ – 10’’

Bench Size:  1060*930*1050mm

Weight:  800kg

Max Tightening Torque:  67 kN*m(50ftlb)

Max Loosening Torque:  81 kN*m(60ftlb)

Operating Height:  800mm

Hydraulic Pressure Range:  0-20 Mpa

Power:  3Kw, 220V, 50Hz

Chain Rotation Speed:  less than 10 rpm

Piston Driver Speed:  1.8m per minute

The threaded connections of the driver chuck and top sub may become very tightly tensioned during drilling. It is convenient to break the hammer threads on the rig, but if the threads cannot be loosened or tend to get stuck, a breakout bench is the solution.

This handy but powerful breakout bench can easily be placed in a workshop or container and it breaks DTH hammers between 3.5″ adn 10″. Select the right breakout bench depending on voltage and power source.

For more details, pls check the follow link:Breakout Bench Operation
