Description

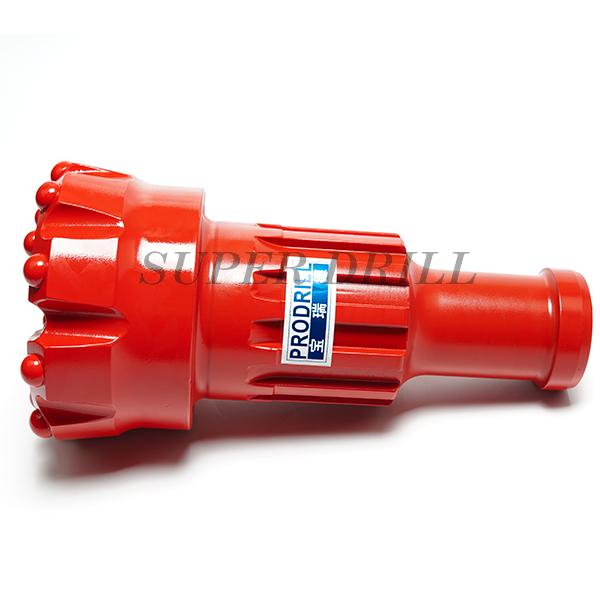

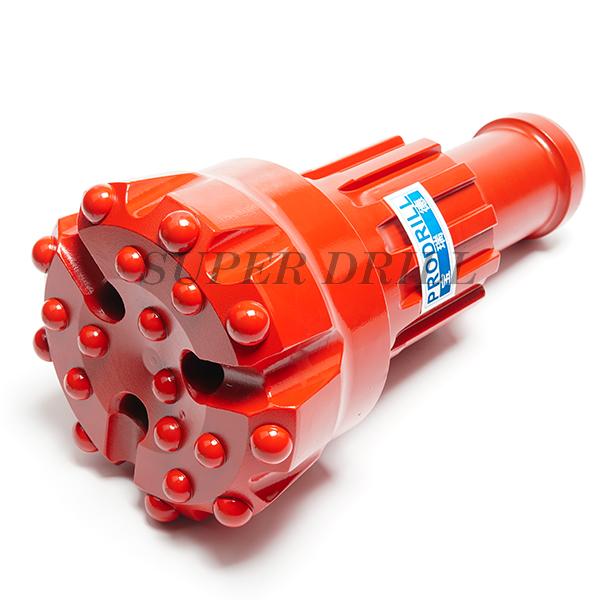

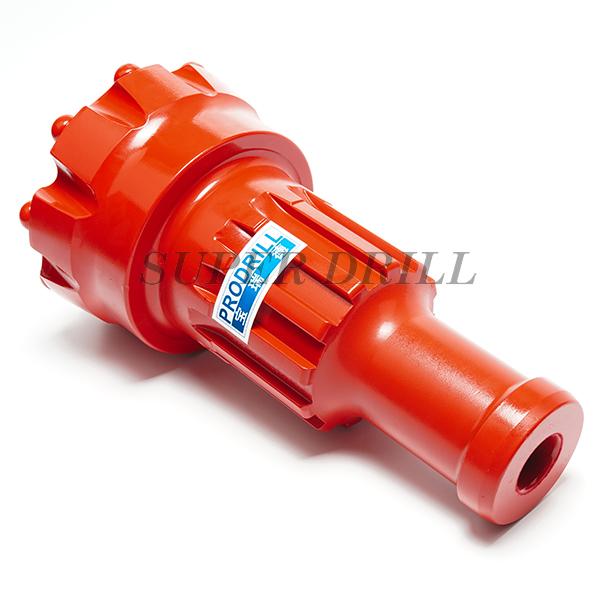

rock drilling tools manufacturerSuperdrill offers a comprehensive range of DTH drill bits with M shanks type for a wide range of hole sizes, which have been designed to match all conceivable applications for water well industries, mining and construction.
- Code No.: M60-165
- Diameter: 165mm
- Air Holes No.: 3
- Gauge Buttons: 9*18mm
- Face Buttons: 10*16mm
- Face Design: Concave
- Carbide Design: Dome
- Apporx. Weight: 27.0KGS
Shank types: M 30, M 40, M 50, M 60/65, M 380.
DTH rock drill bits hole diameter: 3”, 4”, 5”, 6”, 8”(85mm-305mm)

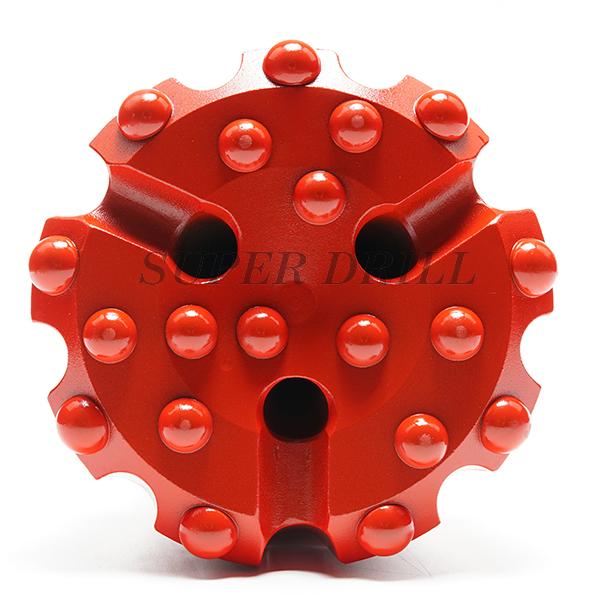

Concave Face
The all around application bit face specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.
Dome/Hemispherical Buttons
Universal buttons for all rock formation, best suited to hardest and very abrasive rock formation.
M shank DTH drill bit with flat face, 19 dome carbide buttons for blasting bore holes, water well drilling.
PDFFor more details please watch PDF online: DTH hammer bits with M shanks Catalogue
