Description

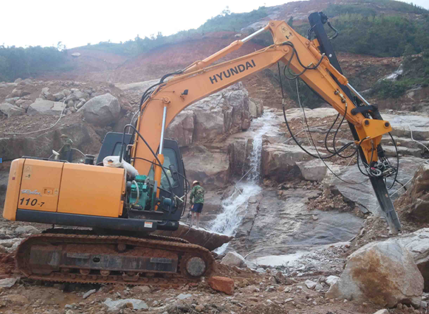

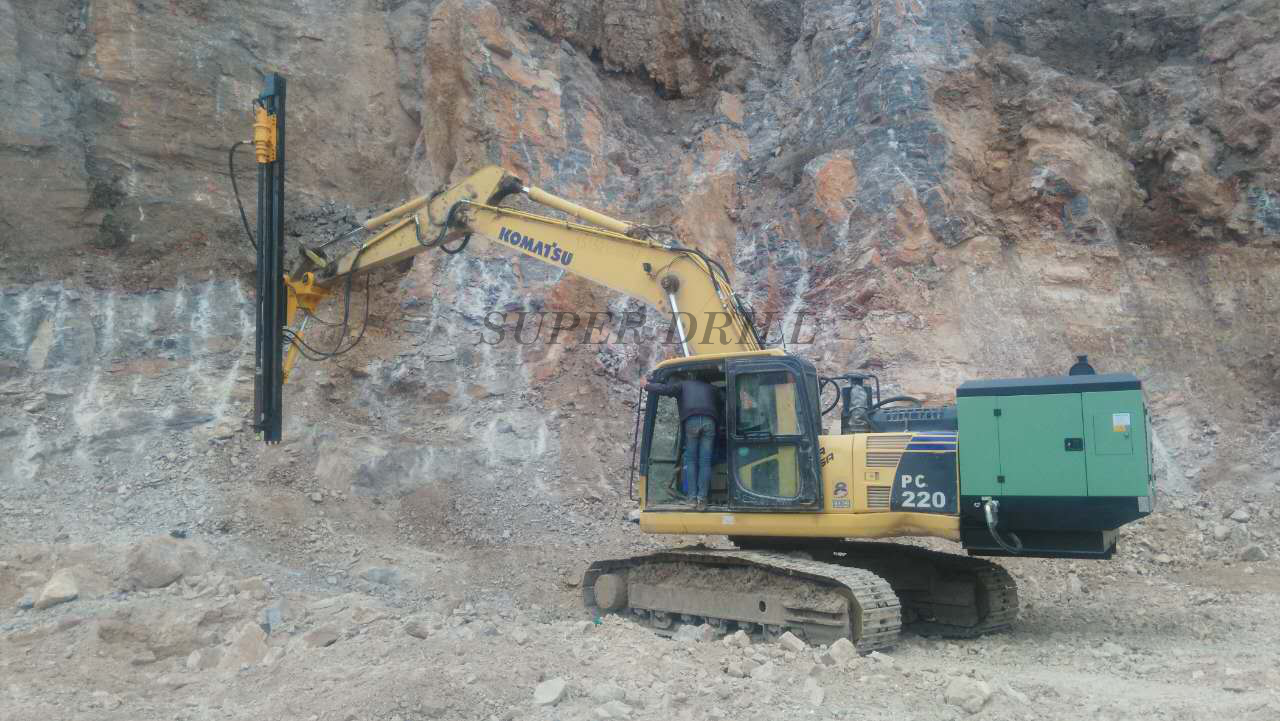

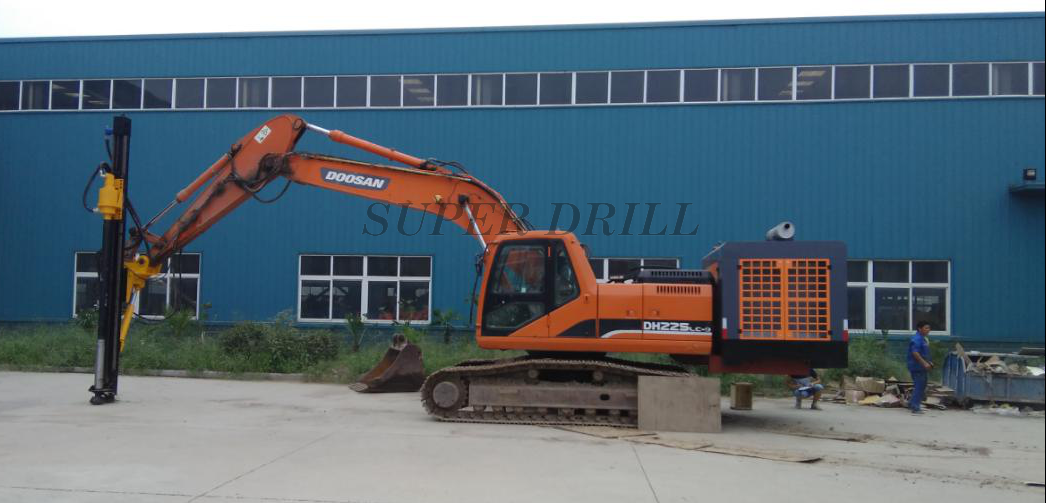

DTH Drilling Rig rock drilling machine on hbsuperdrill
- Weights/kg 1500:
- Size/m 6.0*2.0*1.5:
- Maximum operating pressure/MPa 21:
- Hole Range/mm 110-155:
- Rod Length/mm Φ76-3000:
- DTH hammer 45A/55A:
- Drilling Depth/m ≤30:
- Rotation Torque/N.m 3000:
- Rotation Speed/rpm 40-60:
- Model KSZJ-15/14.5:
- Free Air Delivery/m³/min 15:
- WorKing Pressure/bar 14.5:
- Diesel engine power/kW 131:
- Size/mm 3000*1520*1800:
- Weights/kg 2500:
- Adapter Excavator ≥15t:
1.Main features
l High-end configuration: Imported hydraulic valve block.
l All the operations are controlled by the electrical-controlled appliance, and it is safe and comfortable for handlers working in the cab.
l There is a Diesel-moving screw compressor mounted in the cab at the rear counterweight, independent drive, strong wind pressure, air volume, without digging machine itself affect the system, slag better.
2. Main Technical Parameters
| PD-150 DTH Excavators Attachments | ||
| Drilling Rig | Weights/kg | 1400 |
| Size/m | 6.0*2.0*1.5 | |
| Maximun operating pressure/Mpa | 21 | |
| Bit、 Rod | Hole Range/mm | 110-155 |
| Rod Length/mm | Φ76-3000 | |
| DTH hammer | 35A/45A/55A | |
| Drilling Depth/m | ≤20 | |
| ROTARY HEADS | Rotation Torque/N.m | 3000 |
| Rotation Speed/rpm | 40-60 | |
| Air Compressor | Model | KSZJ-15/14.5 |
| Free Air Delivery/m³/min | 15 | |
| Working Pressure/bar | 14.5 | |
| Diesel engine power/HP | 190 | |
| Size/mm | 3000*1520*1800 | |
| Weights/kg | 2500 | |
| Adapter Excavator | ≥15t | |
