    Description

    rock drilling tools factorySuperdrill manufactures rock drill bits: T45 Threaded Button Bit is the most important size for
    benching and long-hole drilling underground
    Code No.: Q13-89-T45-UF
    Thread: T45
    Diameter: 89mm
    Gauge Buttons: 8*13mm
    Front Buttons: 5*13mm
    Skirt Design: Standard
    Face Design: Uniface
    Carbide Design: Semi-Ballistic
    Weight: 4.18KG

    Diameter: 76mm, 89mm, 102mm
    Skirt body: retrac, and normal, straightrac
    Face type: flat, uniface, drop center
    Carbide shape:  Dome, ballistic, semi-ballistic
    Used in Bench drilling, underground long hole drilling to match Extension Drill Rod, drifting drill steel heavy duty top hammer.

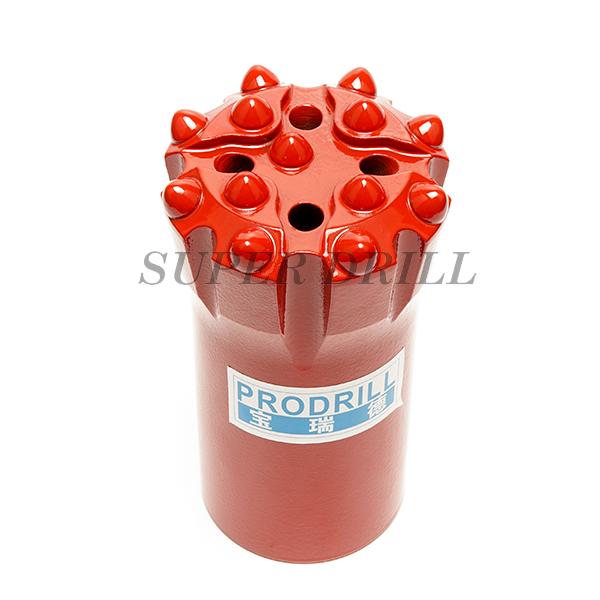

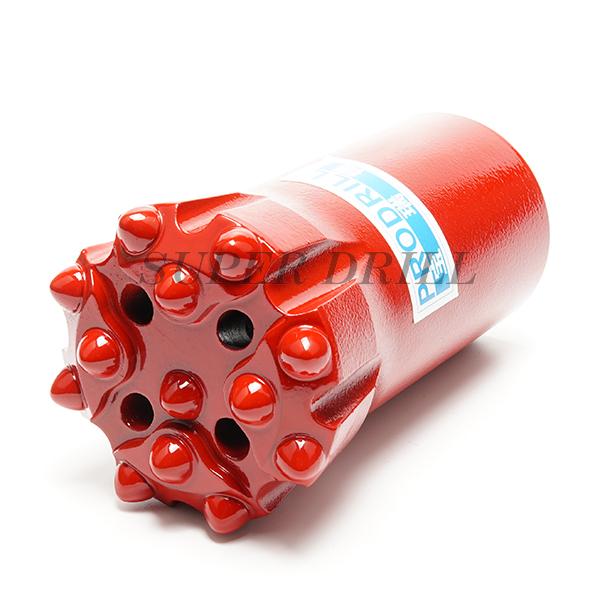

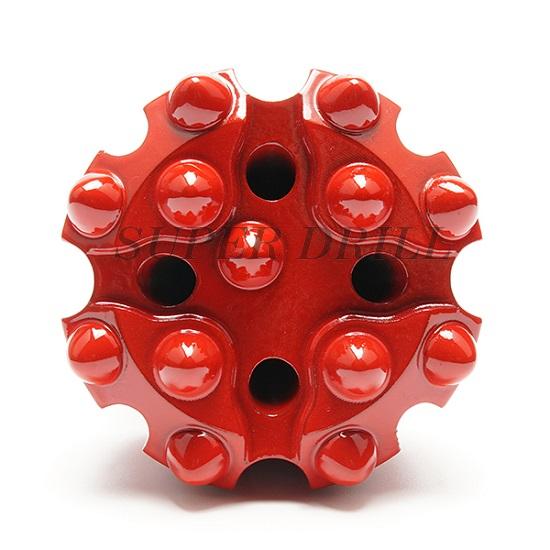

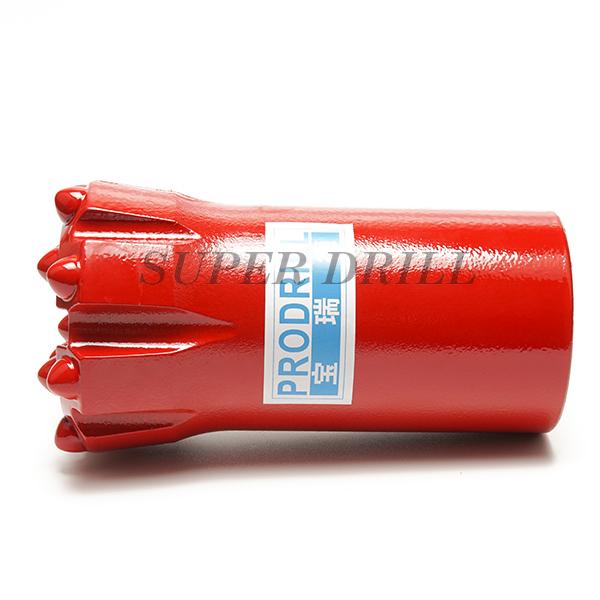

    T45 Threaded Drill Bit with uniface design.

    13 Semi-Ballistic Buttons, 89mm Diamter, T45 Thread with Uniface, Standard body Top Hammer Bit to match with Extension Drill Rods for bench drilling and underground long hole drilling.


    Sandvik Top hammer drill rig RANGER DX700 usingSuperdrill drill bits , showing perfect drilling performance of higher penetration rate , longer life, lower cost.

    For more details please watch PDF online:

    T45 Drill Bits for Bench Drilling, Long Hole Drilling Underground Catalogue
