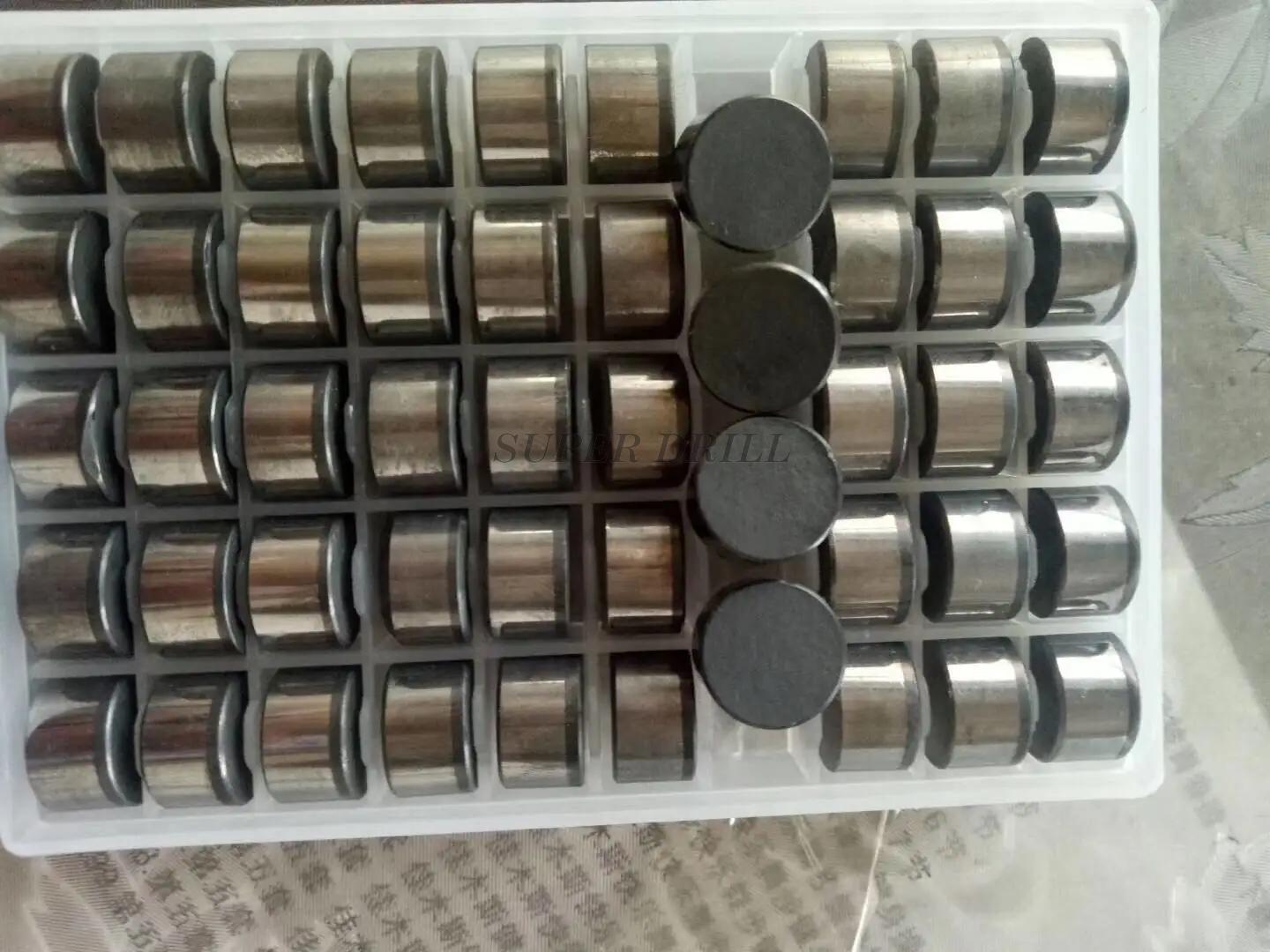

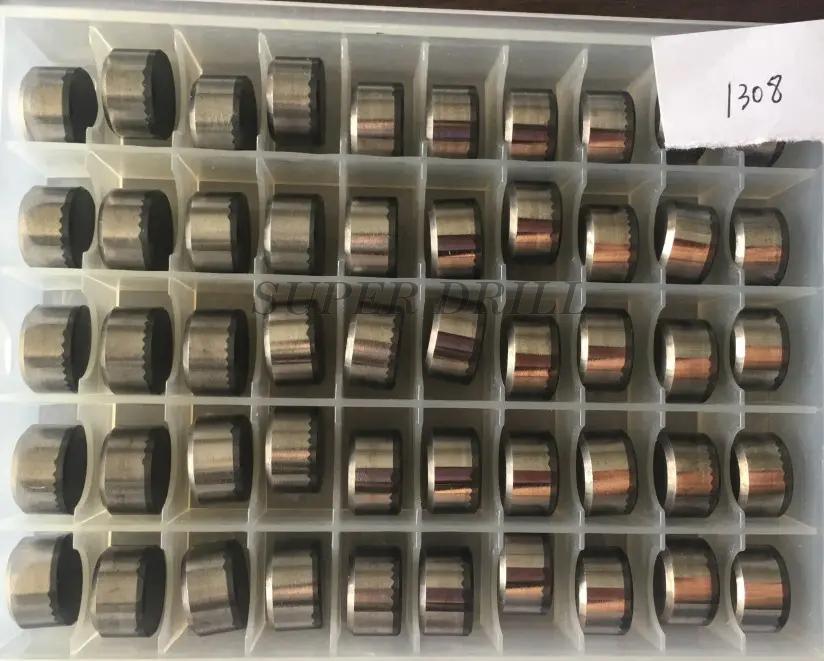

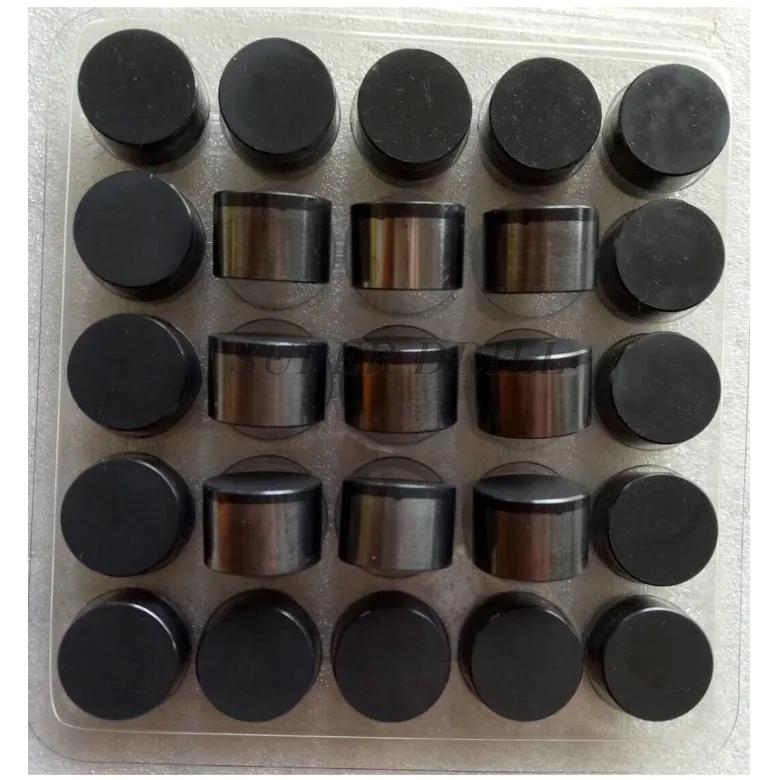

1308 1313 1613 1616 1916 pdc insert pdc cutter for rock drill bit
1.PDC cutter Introduction:
PDC (Polycrystalline Diamond Compact) Cutter is kind of superhard material that compact polycrystalline diamond
with tungsten carbide substrate at ultra-high temperature and pressure.
Now PDC Cutters are widely applied to oilfield drilling, gas and geological exploration, coal mining and many other
drilling and milling applications, tooling as PDC drill bits, such as Steel PDC Drill Bits & Matrix PDC Drill Bits for
oil drilling and Tri-cone PDC Drill Bits for coal mining. Hereby listed some common sizes of PDC Cutters used for
Oilfield Drilling.
High compositional & structural homogeneity
Excellent bonding between diamond particles
High wear resistance
High impact resistance
High thermal stability
Optimized interface between diamond and tungsten-carbide layers for excellent binding
Best general performance available in the market
with tungsten carbide substrate at ultra-high temperature and pressure.
Now PDC Cutters are widely applied to oilfield drilling, gas and geological exploration, coal mining and many other
drilling and milling applications, tooling as PDC drill bits, such as Steel PDC Drill Bits & Matrix PDC Drill Bits for
oil drilling and Tri-cone PDC Drill Bits for coal mining. Hereby listed some common sizes of PDC Cutters used for
Oilfield Drilling.
2.pdc cutter/pdc insert advantage:
High density (low porosity)High compositional & structural homogeneity
Excellent bonding between diamond particles
High wear resistance
High impact resistance
High thermal stability
Optimized interface between diamond and tungsten-carbide layers for excellent binding
Best general performance available in the market
|
Standard Sizes:
|
||||||||
|
SPEC.
|
1919
|
1916
|
1913
|
1619
|
1616
|
1613
|
1313
|
1308
|
|
D(mm)
|
19.05
|
19.05
|
19.05
|
16
|
16
|
16
|
13.44
|
13.44
|
|
H(mm)
|
19
|
16.31
|
13.2
|
19
|
16.31
|
13.2
|
13.2
|
8
|
