Mining Pneumatic Air Leg rock drill YT24, YT27, YT28, YT29 can be used to drill holes in hard or medium-hard rock, either vertically or horizontally, or angling holes, whether the rock is wet or dry. widely used to drill holes and for the second digging of holes in mines, railroads, irrigation systems, and quarries.

1. SUPER DRILL Air Leg Rock Drill YT24

1. Characteristic:

The SUPER DRILL Air Leg Rock Drill YT24 is highly adaptable to worKing conditions and is used in hard rock rock drilling operations. It is energy-efficient, and its parts are robust and long-lasting. The machine may be utilized with similar types in most cases, which can significantly save customer losses from replacing spare parts.

Fits both the FT140BC long air leg and the FT140BD short air leg. It is also possible to fix it on a drilling shelf or truck.

2. Employ:

The SUPER DRILL Air Leg Rock Drill YT24 is extensively utilized for drilling operations in building sites, mines of all kinds, tunnels, railroads, water conservation projects, and areas under national defense construction.

3. Measurement:
Model:YT 24

Mass (kg)24

Length in millimetres 678

Diameter of Cylinder (mm)70

Piston Diameter (mm)70

Operational Pressure (MPa)0.40.50.63

Frequency of Impact (HZ)≥31

Sound (DB)≤100

Airflow Rate (L/s)≤66.7

Diameter of air pipe (mm)19

Diameter (mm) of a water pipe Thirteen

Size of Drill Bit (mm)34–42

Shank Measurements (mm)22*108±1

2. SUPER DRILL Air Leg Rock Drill YT27



One extremely effective rock drill is the SUPER DRILL Air Leg Rock Drill YT27. The drill is a crucial piece of equipment required for the metallurgy, coal, railway, transportation, water conservation, and stone work for national defense industries. It is extensively used to drill blast holes during rock drilling operations and excavate tunnels in mines.
Although the YT27 rock drill has a broad range of applications, it is particularly useful for drilling blast holes that are inclined and horizontal.

..

 on rocks that are hard (f=8–18) or medium-hard.A blast hole's typical diameter is 34–42 mm, and its effective drilling depth can reach up to 5 meters. Depending on the size of the tunnel section, the machine can be used in conjunction with either the FT160A or FT160B air-leg. It can also be mounted on trolleys or scaffolding.



With its moderate weight, large torque, low air consumption, low noise, high efficiency, and good economic benefits when compared to other Rock drills of the same type, the YT27 air-leg rock drill is a suitable piece of rock drilling equipment. The YT27 air-leg rock drill has been determined to have great performance, a unique construction, dependable operation, easy maintenance, and good user acceptance.

Weigh(Kg)	Length(mm)	Cylinder dia(mm)	Impact energy(J)	Impact frequency(Hz)
27	668*248*202	Φ80	≥75.5	≥36.9

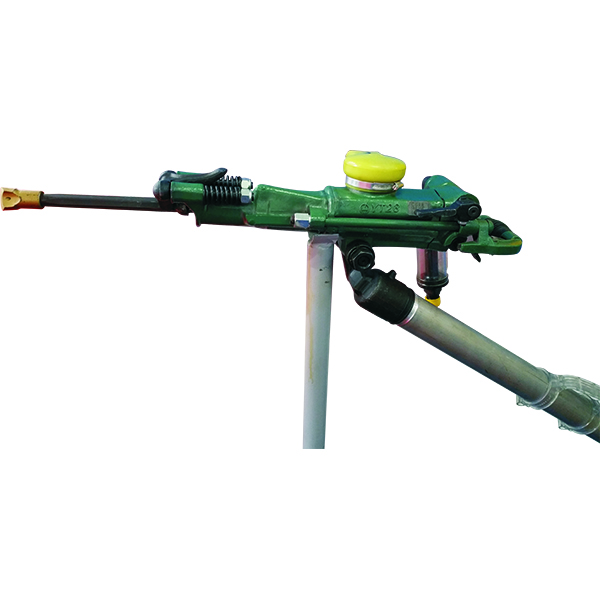

 3.SUPER DRILL Air Leg Rock Drill YT28

One type of air leg rock drill machine with great efficiency is the YT28.
SUPER DRILL Air Leg Rock Drill YT28 is mostly utilized for drilling holes and other tasks in quarries, building railroads, building water conservancies, and building infrastructure for defense projects.
It may be used for drilling and blasting at any direction angle beneath different types of rocks.
Drill hole depth is 5 m, blast hole diameter is 34–42 mm.
This unit may be compatible with either the Model FT160BC long air leg or the Model FT160BD short air leg.
The FY200B oil reservoir's transparent surface helps this equipment control oil.



Summary
There are many other Mining Pneumatic Air Leg Rock Drill YT24, YT27, YT28, YT29, such as: SUPERDRILL's YT29 rock drill, Atlas's rock drill. They are all very good choices.
