Durable Quality Taper Drill Rods

HomeNewsIndustry-newsDurable Quality Taper Drill Rods ...

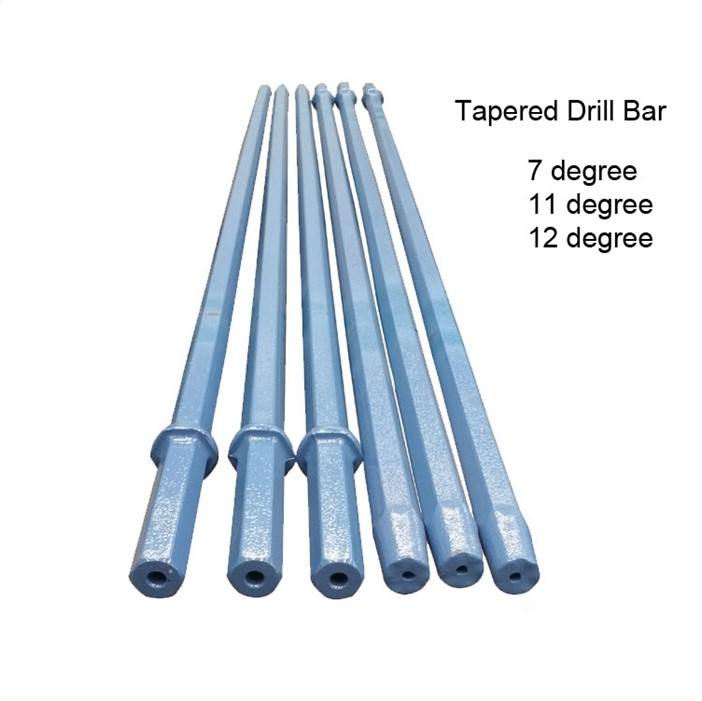

Durable Quality Taper Drill Rods with Various Angle

Tapered drill rod, another name called taper rod, tapered drill steels, This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striKing face position in the rock drill, and a tapered bit end. Tapered steel lengths—available from 0.6 m to 3.6 m in length—are measured from the collar to the bit end.

Shank Hexagon: 19 x108 mm, 22x 108mm, 25 x108 mm, 25 mmX159 mm 6, 7, 11, 12 degree taper in most lengths, taper degree of Drill Steel is mostly imports for excellent drilling productivity.

For drilling medium-hard to hard and abrasive rock formations, Taper angles of 11 and 12-degrees are normally used on modern drill rigs, like our model no. PD-Y58 crawler hydraulic rock drill. Also for Y6, Y10, Y24, YT24, Mobile rock drill pneumatic and hydraulic.



Shank Style

Length

Tapered Angle



Mm

foot/inch

4 degree

7 degree

  11 degree 12 degree

Hex19 × 108mm

400 ~ 4,000

1’ 4” ~ 13’ 1”

Hex22 × 108mm

400 ~ 9,600

1’ 4” ~ 31’ 6”

Hex25 × 108mm

600 ~ 6,400

1’ 11 5/8” ~ 21’

Hex25 ×159mm

800 ~ 6,400

2’ 7” ~ 21’
